Telephone console for BMW 7 Series E38 740i (1996)

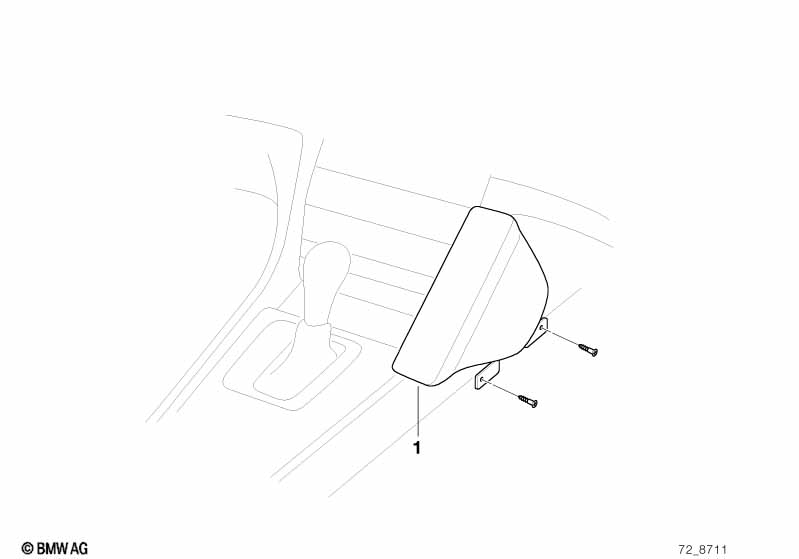

This Telephone console technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Original BMW grained surface | ||||||||||
| 01 | Telephone console | SCHWARZ | 1 | 84139404986 | $218.74 | ENDED | Shop at ECS Tuning | |||
| Original BMW leather surface | ||||||||||
| 01 | Montana leather telephone console | SCHWARZ | 1 | 84139405096 | $329.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Montana leather telephone console | GRAU | 1 | 84139405097 | ENDED | Shop at ECS Tuning | ||||
| 01 | Montana leather telephone console | SANDBEIGE | 1 | 84139405098 | $315.83 | ENDED | Shop at ECS Tuning | |||
| 01 | Montana leather telephone console | MARINEBLAU | 1 | 84139405099 | ENDED | Shop at ECS Tuning | ||||
| 01 | Montana leather telephone console | LAVENDELGRAU | 1 | 84139405104 | ENDED | Shop at ECS Tuning | ||||
| 01 | Montana leather telephone console | ENGLISCHGRUEN | 1 | 84139405105 | ENDED | Shop at ECS Tuning | ||||
| 01 | Montana leather telephone console | PASTELLGRUEN | 1 | 84139405106 | ENDED | Shop at ECS Tuning | ||||
| 01 | Telephone console leather | PEARLBEIGE | 1 | 84130004117 | ENDED | Shop at ECS Tuning | ||||
| 01 | Telephone console leather | TOBACCOBRAUN | 1 | 84130004118 | ENDED | Shop at ECS Tuning | ||||
| 01 | Telephone console leather | LIGHTGELB | 1 | 84130004119 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Telephone console?
- This technical diagram illustrates the Telephone console within the Retrofitting / conversion / accessories group for the 7 Series E38 740i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Telephone console (Part #84139404986).
- Which models use the hardware listed in this Telephone console?
- The hardware and components featured in the Telephone console are specific to the 7 Series E38 740i produced during 1996. These technical specifications ensure that parts like the Telephone console (84139404986) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Telephone console assembly?
- Each item in the Telephone console corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Telephone console by locating its position on the schematic, which then links to the official BMW part number 84139404986 for the Retrofitting / conversion / accessories section.
