Installing set 2.battery for BMW 7 Series E32 730iL (1992)

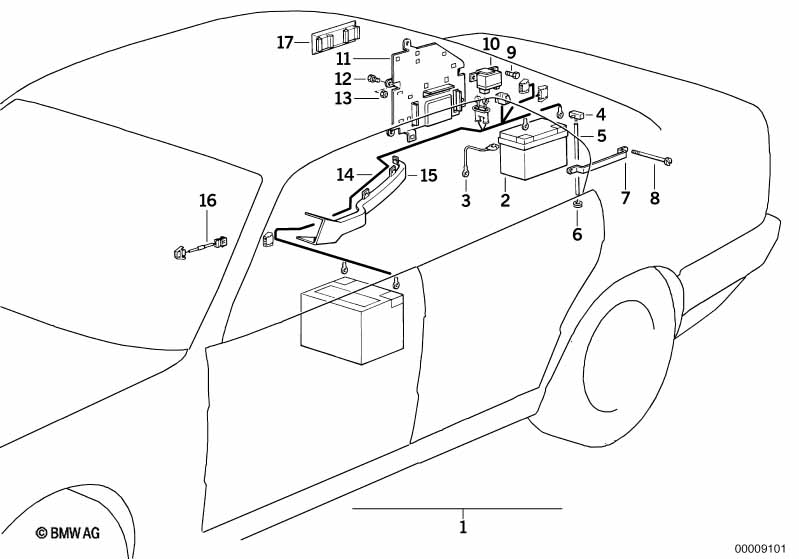

This Installing set 2.battery technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Empty battery | 12/25AH | 1 | 61211382220 | $103.92 | ENDED | Shop at ECS Tuning | |||
| 02 | Empty battery | 12V 25AH | 1 | 61211459650 | $139.09 | ENDED | Shop at ECS Tuning | |||
| 03 | Battery cable negative | L=860MM | 1 | 12421724339 | $46.44 | ENDED | Shop at ECS Tuning | |||
| 04 | Expansion tank | 1 | 61211376693 | $3.38 | Shop at ECS Tuning | |||||
| 05 | Hose line | 1 | 61211377884 | $1.05 | Shop at ECS Tuning | |||||
| 06 | Grommet | 10,5MM | 1 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 07 | Chain tensioner | 1 | 61211459044 | $9.61 | Shop at ECS Tuning | |||||
| 08 | Screw | M6X135 | 2 | 61211390736 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X10-Z1 | 2 | 07119915057 | $3.05 | Shop at ECS Tuning | ||||
| 10 | Relay, make contact, black | 1 | 09/1991 | 61368350358 | $13.96 | Shop at ECS Tuning | ||||
| 11 | Battery hold down | 12V 65AH | 1 | 65612131965 | ENDED | Shop at ECS Tuning | ||||
| 11 | Battery hold down | 12V 25AH | 1 | 65618111580 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M5X15 | 5 | 07119913235 | $3.51 | ENDED | Shop at ECS Tuning | |||
| 13 | Hex nut | M5 | 5 | 07119922038 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 14 | Wiring set | 1 | 09/1991 | 09/1992 | 61128350637 | ENDED | Shop at ECS Tuning | |||
| 15 | Cover, wheel housing, rear right | 1 | 61131390642 | ENDED | Shop at ECS Tuning | |||||
| 16 | Adapter lead | 1 | 61128350742 | ENDED | Shop at ECS Tuning | |||||
| 17 | Holder | 1 | 61131383760 | $1.20 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730iL Installing set 2.battery?
- This technical diagram illustrates the Installing set 2.battery within the Retrofitting / conversion / accessories group for the 7 Series E32 730iL produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Empty battery (Part #61211382220).
- Which models use the hardware listed in this Installing set 2.battery?
- The hardware and components featured in the Installing set 2.battery are specific to the 7 Series E32 730iL produced during 1992. These technical specifications ensure that parts like the Empty battery (61211382220) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Installing set 2.battery assembly?
- Each item in the Installing set 2.battery corresponds to the numbered list below the illustration. For the 7 Series E32 730iL, you can identify the Empty battery by locating its position on the schematic, which then links to the official BMW part number 61211382220 for the Retrofitting / conversion / accessories section.
