Installing set 2.battery for BMW 5 Series E34 M5 (1995)

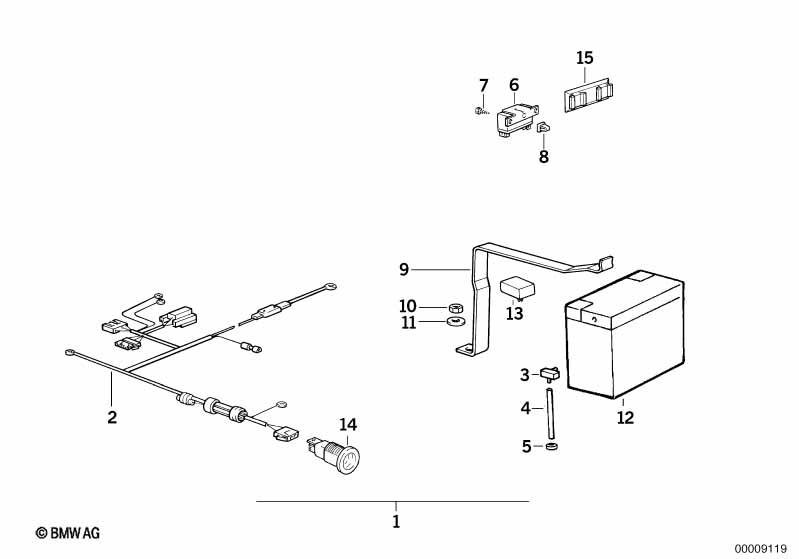

This Installing set 2.battery technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Wiring set | 1 | 09/1992 | 61128359869 | $160.70 | ENDED | Shop at ECS Tuning | |||
| 03 | Expansion tank | 1 | 61211376693 | $3.38 | Shop at ECS Tuning | |||||
| 04 | Hose running meter | X | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| 05 | Grommet | 10,5MM | 1 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 06 | Relay, make contact, black | 1 | 61368350358 | $13.96 | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapping screw | ST4,8X16 Z2 | 2 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 08 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 09 | Battery hold down | 1 | 61218359043 | $9.37 | Shop at ECS Tuning | |||||
| 10 | Hex nut | M6 | 1 | 06/1996 | 07119922824 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 10 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Washer | 6,4 | 1 | 06/1996 | 07119936425 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 11 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Empty battery | 12/25AH | 1 | 61211382220 | $103.92 | ENDED | Shop at ECS Tuning | |||
| 12 | Empty battery | 12V 25AH | 1 | 61211459650 | $139.09 | ENDED | Shop at ECS Tuning | |||
| 13 | Spacer | 1 | 61211350825 | $1.20 | Shop at ECS Tuning | |||||
| 14 | Plug-in socket | 1 | 61131391630 | $41.25 | +core | Shop at ECS Tuning | ||||
| 15 | Holder | 1 | 61131383760 | $1.20 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
