Chargeable hand lamp for BMW 3 Series E30 325e (1987)

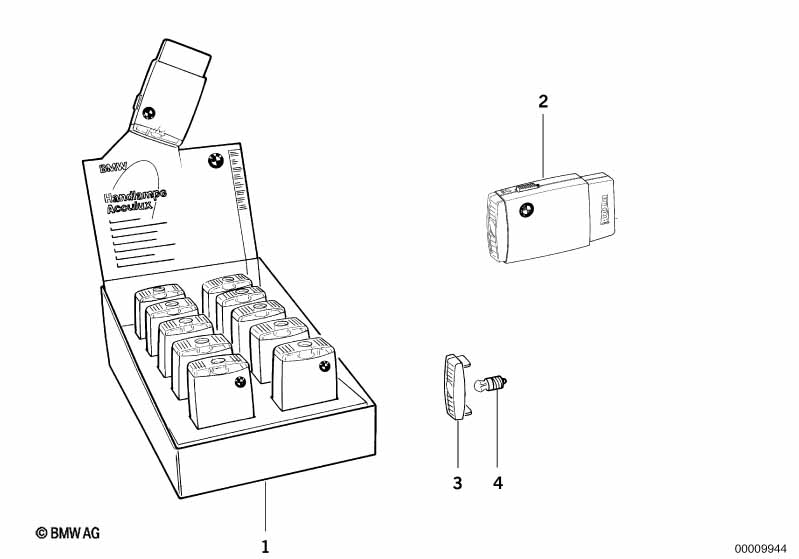

This Chargeable hand lamp technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

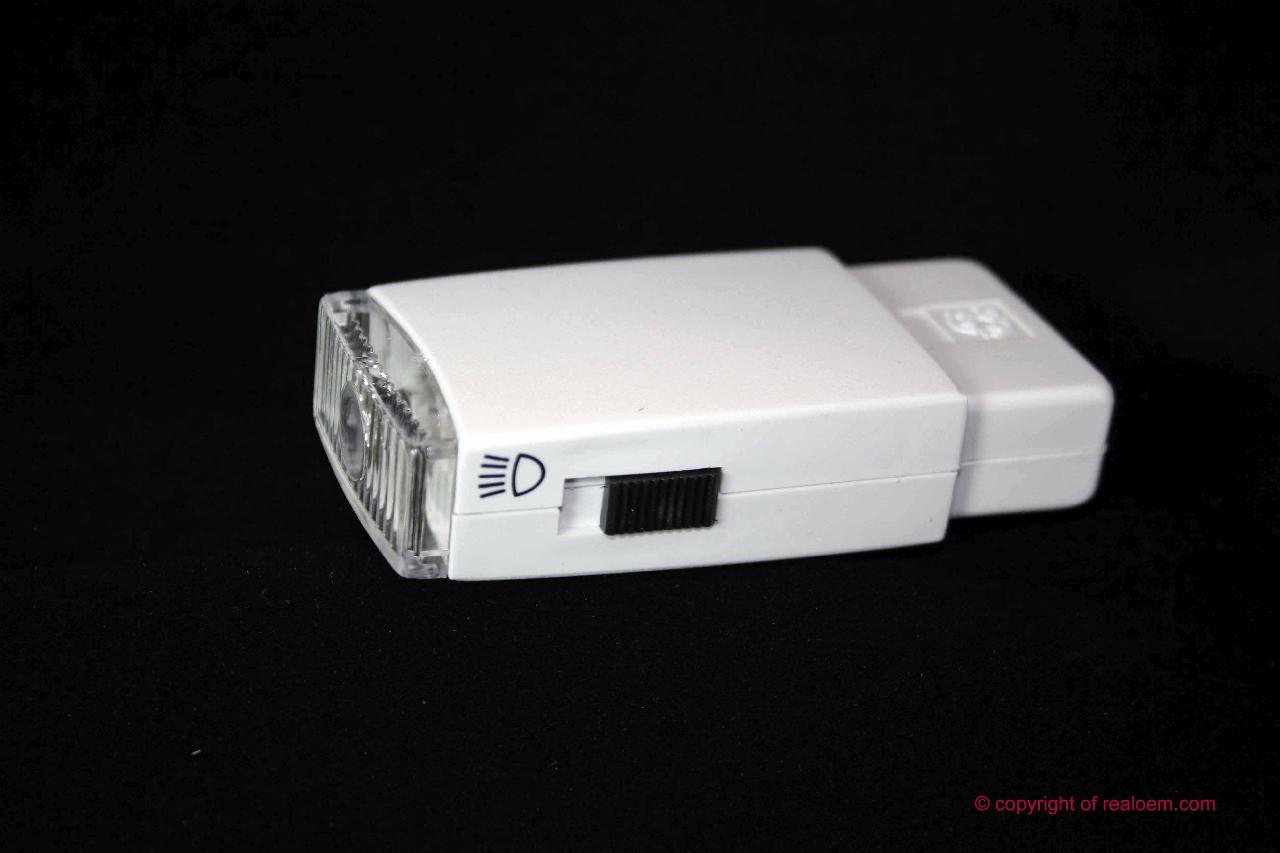

| 01 | Chargeable hand lamp | 10 ST. | 1 | 82119413147 | $27.25 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Chargeable hand lamp | 1 | 82119413237 | $27.25 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lens | 1 | 82119413148 | $2.54 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb | 0,25 A | 1 | 63217167019 | $1.50 | ENDED | Shop at ECS Tuning | |||
| 04 | Bulb | 0,25 A | 1 | 82119413149 | $2.96 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
