Mud flaps for BMW 3 Series E30 320i (1992)

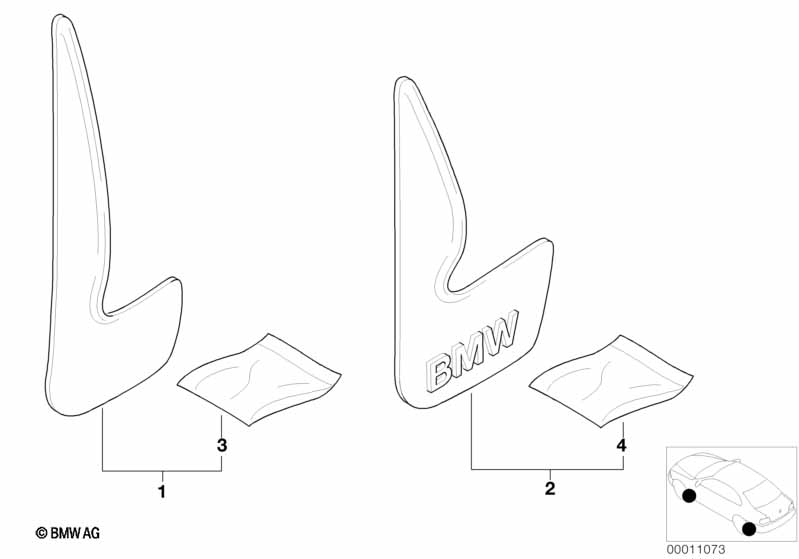

This Mud flaps technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set mud flaps, front | 1 | 72601953292 | $82.50 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set mud flaps, rear | 1 | 10/1990 | 72609401168 | $81.50 | ENDED | Shop at ECS Tuning | |||
| 03 | Fixing clamp front | 4 | 72608117730 | $1.78 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fixing clamp, rear | 4 | 10/1990 | 72608103010 | $3.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
