Mud flaps for BMW 5 Series F10 525d (2011)

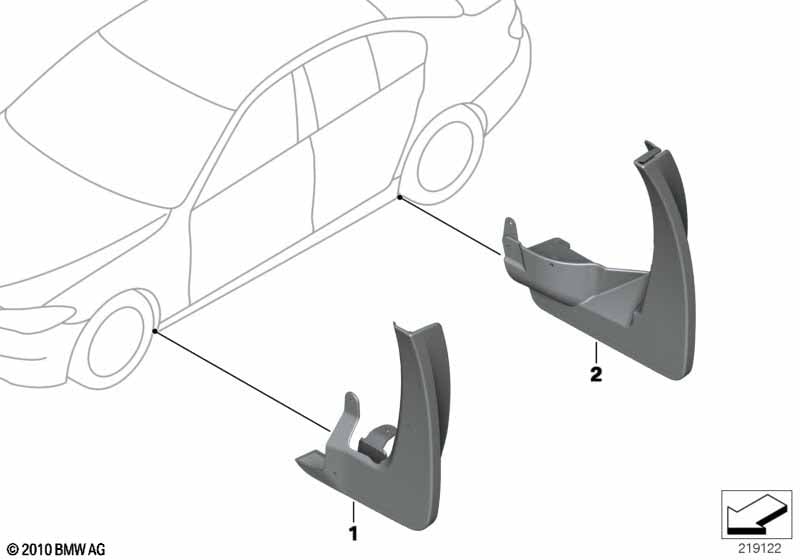

This Mud flaps technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with M Sports package and M Aerodynamics package |
P337A=No S715A=No |
|||||||||
| 01 | Set mud flaps, front | F10 | 1 | 82162155858 | Shop at ECS Tuning | |||||
| 02 | Set mud flaps, rear | F10 | 1 | 82162155857 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
