Mud flaps for BMW 3 Series F34 GT 320d (2015)

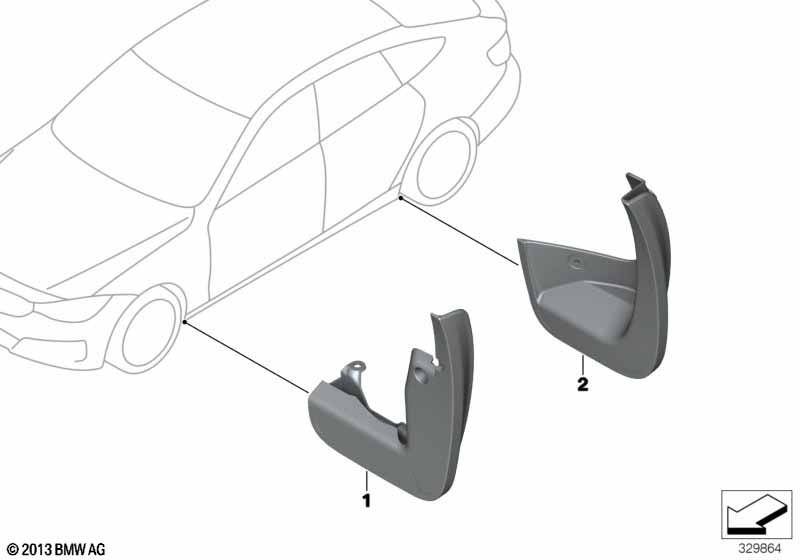

This Mud flaps technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. For vehicles with National version China |
L8AAA=No |
||||||||
| 01 | Set mud flaps, front | F34 | 1 | 82162333951 | Shop at ECS Tuning | |||||
| 02 | Set mud flaps, rear | F34 | 1 | 82162333952 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F34 GT 320d Mud flaps?
- This technical diagram illustrates the Mud flaps within the Retrofitting / conversion / accessories group for the 3 Series F34 GT 320d produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Set mud flaps, front (Part #82162333951).
- Which models use the hardware listed in this Mud flaps?
- The hardware and components featured in the Mud flaps are specific to the 3 Series F34 GT 320d produced during 2015. These technical specifications ensure that parts like the Set mud flaps, front (82162333951) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mud flaps assembly?
- Each item in the Mud flaps corresponds to the numbered list below the illustration. For the 3 Series F34 GT 320d, you can identify the Set mud flaps, front by locating its position on the schematic, which then links to the official BMW part number 82162333951 for the Retrofitting / conversion / accessories section.
