Mud flaps for BMW 2 Series F45 Active Tourer LCI 220i (2018)

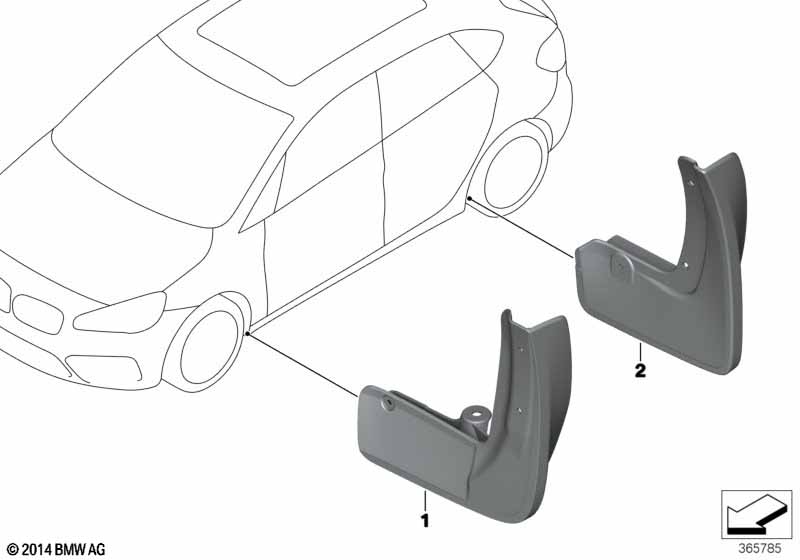

This Mud flaps technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with M Sports package and M Aerodynamics package |
P337A=No S715A=No |
|||||||||
| 01 | Set mud flaps, front | F45 / F46 | 1 | 82162348036 | Shop at ECS Tuning | |||||
| 02 | Set mud flaps, rear | F45 | 1 | 82162348037 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer LCI 220i Mud flaps?
- This technical diagram illustrates the Mud flaps within the Retrofitting / conversion / accessories group for the 2 Series F45 Active Tourer LCI 220i produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Set mud flaps, front (Part #82162348036).
- Which models use the hardware listed in this Mud flaps?
- The hardware and components featured in the Mud flaps are specific to the 2 Series F45 Active Tourer LCI 220i produced during 2018. These technical specifications ensure that parts like the Set mud flaps, front (82162348036) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mud flaps assembly?
- Each item in the Mud flaps corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer LCI 220i, you can identify the Set mud flaps, front by locating its position on the schematic, which then links to the official BMW part number 82162348036 for the Retrofitting / conversion / accessories section.
