Ignition harness with marten repeller for BMW 3 Series E30 325i (1991)

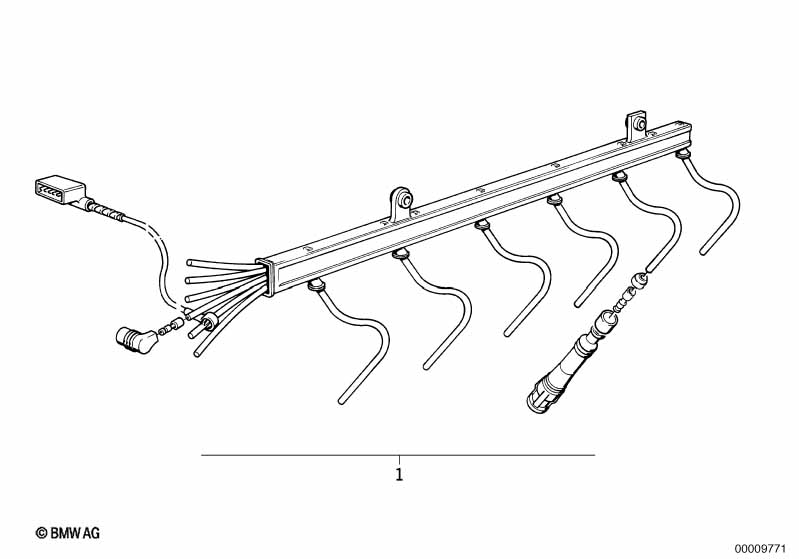

This Ignition harness with marten repeller technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition harness with marten repeller | 1 | 12121735217 | $337.02 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Ignition harness with marten repeller?
- This technical diagram illustrates the Ignition harness with marten repeller within the Retrofitting / conversion / accessories group for the 3 Series E30 325i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Ignition harness with marten repeller (Part #12121735217).
- Which models use the hardware listed in this Ignition harness with marten repeller?
- The hardware and components featured in the Ignition harness with marten repeller are specific to the 3 Series E30 325i produced during 1991. These technical specifications ensure that parts like the Ignition harness with marten repeller (12121735217) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ignition harness with marten repeller assembly?
- Each item in the Ignition harness with marten repeller corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Ignition harness with marten repeller by locating its position on the schematic, which then links to the official BMW part number 12121735217 for the Retrofitting / conversion / accessories section.
