Retrofit kit PDC, front and rear for BMW 1 Series E82 118d (2013)

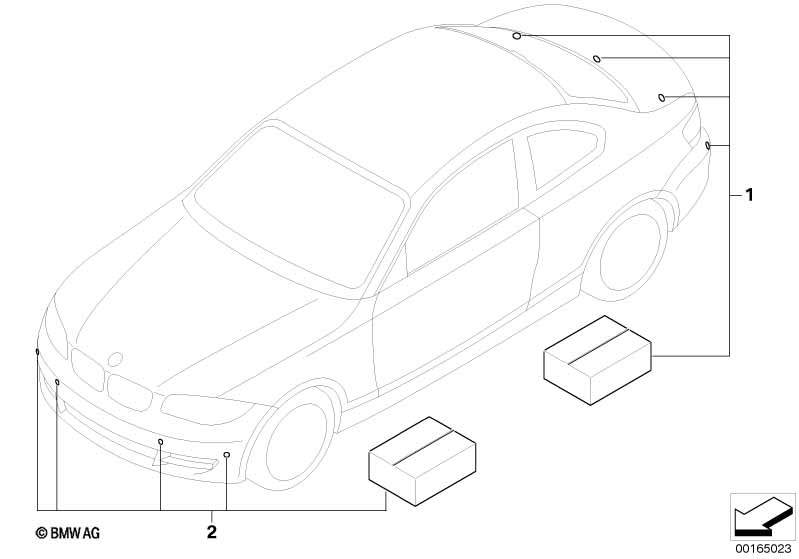

This Retrofit kit PDC, front and rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. This retrofit equipment is not suitable for use with the aerodynamic package |
|||||||||
| Ultrasonic converter | ||||||||||
| 01 | Install.kit, Park Distance Control,rear | 1 | 66200441940 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction w/PDC control module | ||||||||||
| 02 | Install.kit, Park Distance Control,front | 1 | 66200441941 | ENDED | Shop at ECS Tuning | |||||
| additionally required parts: Switch unit, center console Trim cover, switch module, center console |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
