Rear bicycle carrier for BMW MINI F56 Cooper (2020)

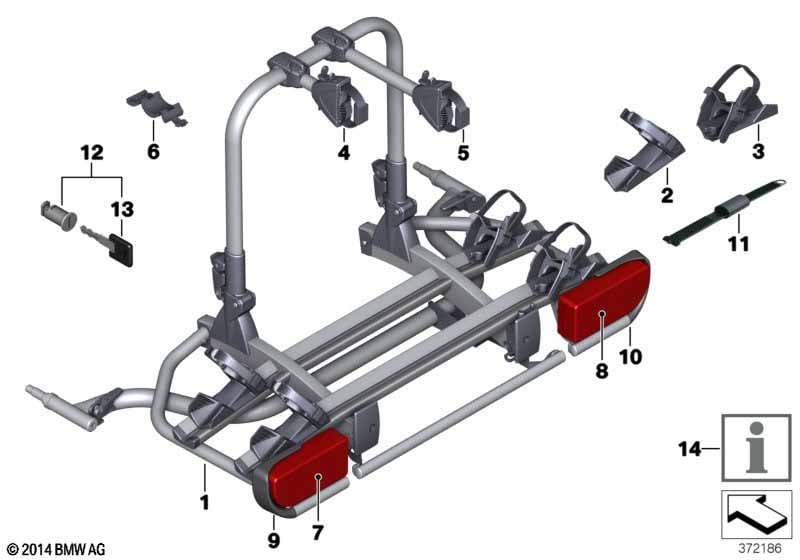

This Rear bicycle carrier technical drawing provides a detailed breakdown of the assembly for the MINI F56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with John Cooper Works exterior package and JCW Aerodynamics kit and Preparations for rear luggage carrier |
P7KNA=No S3A1A=No S3ARA=Yes |
|||||||||
| 01 | Rear bicycle carrier | F56/F57/F55 | 1 | 82722285993 | Shop at ECS Tuning | |||||
| The license plate can be mounted on the support either directly or with a license-plate carrier. The license- plate carrier is not an element of the set. |
||||||||||
| 02 | Wheelhousing liner, left | 1 | 82712220393 | Shop at ECS Tuning | ||||||
| 03 | Wheelhousing liner, right | 1 | 82712220392 | Shop at ECS Tuning | ||||||
| 04 | Spacer, short | 2011 | 1 | 82712220394 | Shop at ECS Tuning | |||||
| 05 | Spacer, medium | 2011 | 1 | 82712220397 | Shop at ECS Tuning | |||||
| 06 | Sleeve, support stand | 1 | 82712220399 | Shop at ECS Tuning | ||||||
| 07 | Rear light, left | 1 | 82710421333 | $61.00 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rear light, left | 1 | 82792449919 | Shop at ECS Tuning | ||||||
| 08 | Rear light, right | 1 | 82710421332 | $61.00 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rear light, right | 1 | 82792449920 | Shop at ECS Tuning | ||||||
| 09 | Lamp guard, left | 1 | 82710421335 | Shop at ECS Tuning | ||||||
| 10 | Lamp guard, right | 1 | 82710421334 | Shop at ECS Tuning | ||||||
| 11 | Ratchet strap | 1 | 82722159337 | ENDED | Shop at ECS Tuning | |||||
| 12 | 4 lock barrels with key | 1 | 82795A08687 | Shop at ECS Tuning | ||||||
| 12 | Lock cylinder with key | 1 | 82720303536 | $24.75 | ENDED | Shop at ECS Tuning | ||||
| no longer available | ||||||||||
| 13 | Key (Code) | CODE 001...041 | 1 | 82720144049 | $8.50 | ENDED, +core | Shop at ECS Tuning | |||
| no longer available | ||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
