MINI LED door projector for BMW MINI Cabrio F57 JCW (2019)

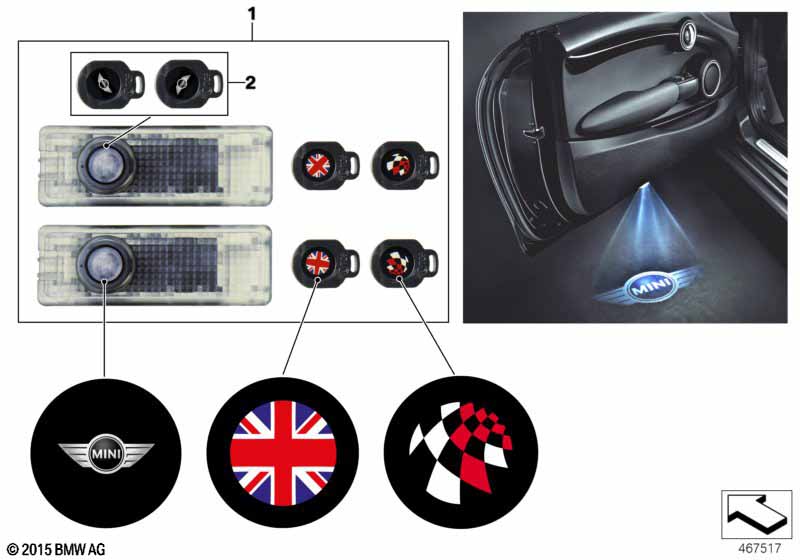

This MINI LED door projector technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Only with door entry lamps installed | ||||||||||
| 01 | MINI LED door projectors | 1 | 63312414106 | ENDED | Shop at ECS Tuning | |||||
| Spare slides for door projectors | ||||||||||
| 02 | Door projector slides L+R MINI logo | 1 | 63312420113 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 JCW MINI LED door projector?
- This technical diagram illustrates the MINI LED door projector within the Retrofitting / conversion / accessories group for the MINI Cabrio F57 JCW produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the MINI LED door projectors (Part #63312414106).
- Which models use the hardware listed in this MINI LED door projector?
- The hardware and components featured in the MINI LED door projector are specific to the MINI Cabrio F57 JCW produced during 2019. These technical specifications ensure that parts like the MINI LED door projectors (63312414106) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the MINI LED door projector assembly?
- Each item in the MINI LED door projector corresponds to the numbered list below the illustration. For the MINI Cabrio F57 JCW, you can identify the MINI LED door projectors by locating its position on the schematic, which then links to the official BMW part number 63312414106 for the Retrofitting / conversion / accessories section.
