Conversion life cycle impulse headlight for BMW 3 Series F31 335dX (2015)

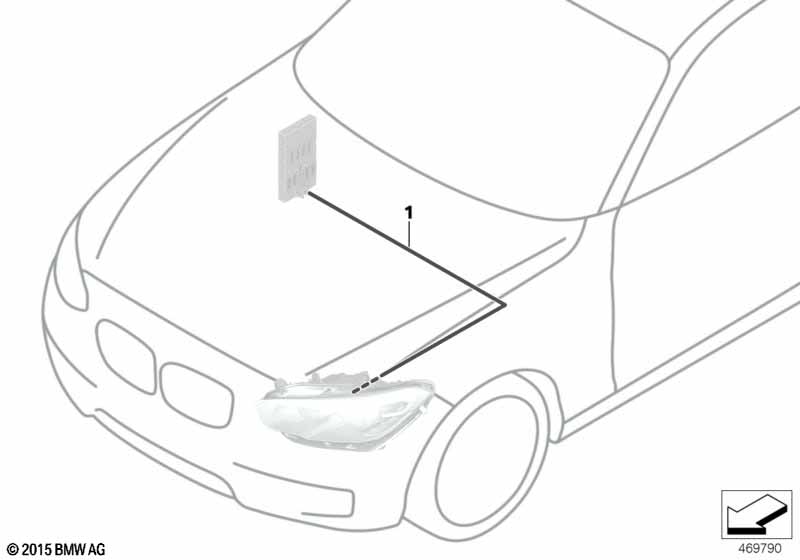

This Conversion life cycle impulse headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 335dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Xenon Light or Adaptive Headlights |
S522A=Yes S524A=Yes |
||||||||
| additionally required parts: Headlamp ITU 631671 Separate components headlamp ITU 631672 / 73 Fanfare horn ITU 612832 |
||||||||||
| 01 | Retrofit wiring harness, facelift lights | 1 | 07/2013 | 07/2015 | 61122410223 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Installation instructions | 1 | 07/2013 | 07/2015 | 01292420945 | Shop at ECS Tuning | ||||
| 01 | Retrofit wiring harness LED headlights | 1 | 07/2013 | 61122410239 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Installation instructions | 1 | 07/2013 | 01292420945 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
