All Weather Floor Liners for BMW 3 Series E90 325xi (2006)

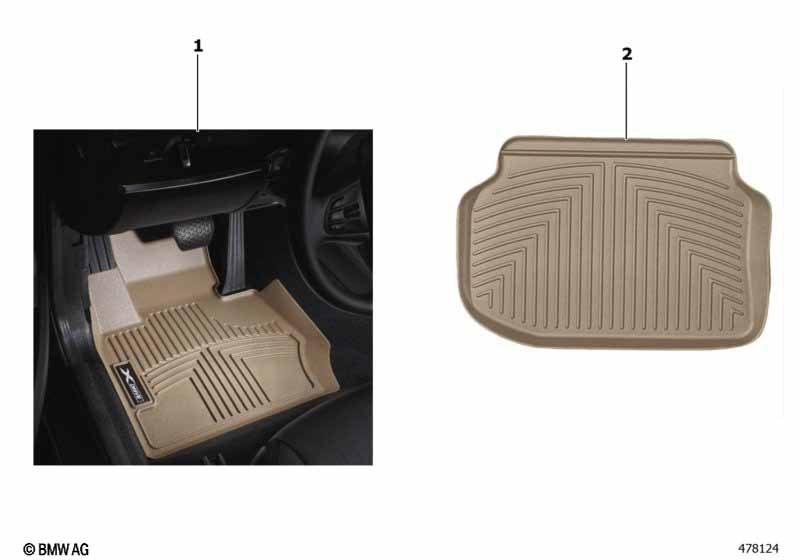

This All Weather Floor Liners technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | All Weather Floor Liners, Front - Black | E90XDR 3 SER | 1 | 82112210412 | Shop at ECS Tuning | |||||
| 01 | All Weather Floor Liners, Front - Beige | E90XDR 3 SER | 1 | 82112210563 | Shop at ECS Tuning | |||||
| 02 | All Weather Floor Liners, Rear - Black | E90XDR 3 SER | 1 | 82112210413 | Shop at ECS Tuning | |||||
| 02 | All Weather Floor Liners, Rear - Beige | E90XDR 3 SER | 1 | 82112210564 | Shop at ECS Tuning | |||||
| 02 | All Weather Floor Liners, Rear - Black | E92 3SER XDR | 1 | 82112220903 | Shop at ECS Tuning | |||||
| 02 | All Weather Floor Liners, Rear - Beige | E92 3SER XDR | 1 | 82112220905 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 325xi All Weather Floor Liners?
- This technical diagram illustrates the All Weather Floor Liners within the Retrofitting / conversion / accessories group for the 3 Series E90 325xi produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the All Weather Floor Liners, Front - Black (Part #82112210412).
- Which models use the hardware listed in this All Weather Floor Liners?
- The hardware and components featured in the All Weather Floor Liners are specific to the 3 Series E90 325xi produced during 2006. These technical specifications ensure that parts like the All Weather Floor Liners, Front - Black (82112210412) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the All Weather Floor Liners assembly?
- Each item in the All Weather Floor Liners corresponds to the numbered list below the illustration. For the 3 Series E90 325xi, you can identify the All Weather Floor Liners, Front - Black by locating its position on the schematic, which then links to the official BMW part number 82112210412 for the Retrofitting / conversion / accessories section.
