Floor mats for BMW 5 Series E60 LCI 528i (2009)

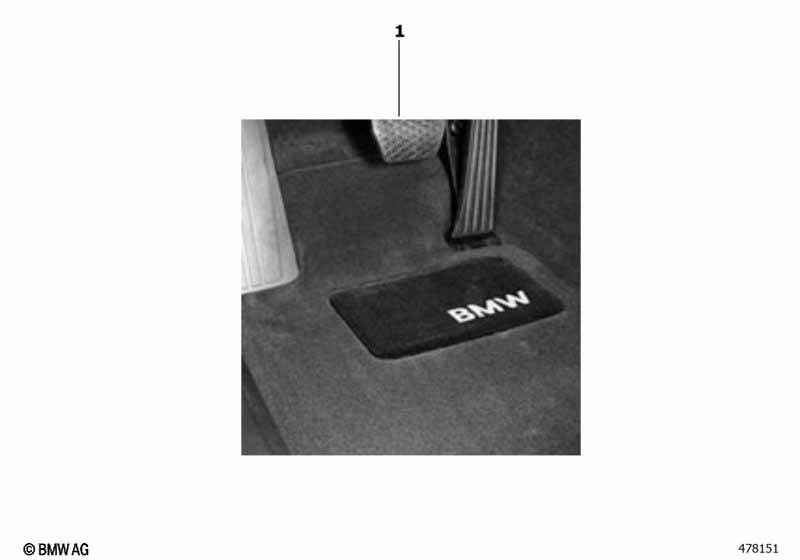

This Floor mats technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor mat | E60-LCI BEIGE | 1 | 82110036133 | $130.00 | Shop at ECS Tuning | ||||
| 01 | Floormat | ANTH E-60 | 1 | 82110302986 | $130.00 | Shop at ECS Tuning | ||||
| 01 | Floormat | GRAY E-60 | 1 | 82110302987 | $130.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Floormat | BEIGE E-60 | 1 | 82110302988 | $130.00 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 528i Floor mats?
- This technical diagram illustrates the Floor mats within the Retrofitting / conversion / accessories group for the 5 Series E60 LCI 528i produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Floor mat (Part #82110036133).
- Which models use the hardware listed in this Floor mats?
- The hardware and components featured in the Floor mats are specific to the 5 Series E60 LCI 528i produced during 2009. These technical specifications ensure that parts like the Floor mat (82110036133) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor mats assembly?
- Each item in the Floor mats corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 528i, you can identify the Floor mat by locating its position on the schematic, which then links to the official BMW part number 82110036133 for the Retrofitting / conversion / accessories section.
