M Performance Parts for BMW 5 Series G31 Touring 520d (2019)

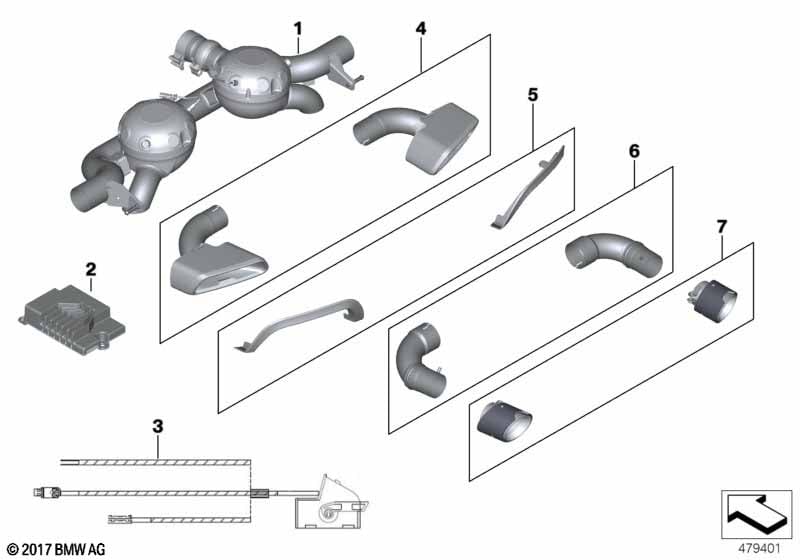

This M Performance Parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust system diesel fuel | M PERFORMANCE | 1 | 07/2019 | 18302444485 | Shop at ECS Tuning | ||||
| 02 | Control unit with Active Sound Design | ERSATZTEIL | 1 | 18302450070 | Shop at ECS Tuning | |||||
| 03 | Wiring harness for Active Sound Design | ERSATZTEIL | 1 | 18302444491 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and M Aerodynamics package Optionally also MPP trim bumper (8 cylinder optics) PN 2 412 410 |
P337A=Yes S715A=Yes |
|||||||||
| 04 | Tailpipe tip, chrome | M PERFORMANCE | 1 | 18302449937 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Set tailpipe trim carbon | M PERFORMANCE | 1 | 18302449938 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Set tailpipe trim carbon | M PERFORMANCE | 1 | 18305B7A528 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover, bumper, rear | -M- | 1 | 51128067763 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444485 | Shop at ECS Tuning | |||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444486 | Shop at ECS Tuning | |||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444487 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and M Aerodynamics package Optionally also MPP trim bumper (8 cylinder optics) PN 2 412 410 |
P337A=Yes S715A=No |
|||||||||
| 04 | Tailpipe tip, chrome | M PERFORMANCE | 1 | 18302449937 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Set tailpipe trim carbon | M PERFORMANCE | 1 | 18302449938 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Set tailpipe trim carbon | M PERFORMANCE | 1 | 18305B7A528 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover, bumper, rear | -M- | 1 | 51128067763 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444485 | Shop at ECS Tuning | |||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444486 | Shop at ECS Tuning | |||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444487 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and M Aerodynamics package Optionally also MPP trim bumper (8 cylinder optics) PN 2 412 410 |
P337A=No S715A=Yes |
|||||||||
| 04 | Tailpipe tip, chrome | M PERFORMANCE | 1 | 18302449937 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Set tailpipe trim carbon | M PERFORMANCE | 1 | 18302449938 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Set tailpipe trim carbon | M PERFORMANCE | 1 | 18305B7A528 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover, bumper, rear | -M- | 1 | 51128067763 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444485 | Shop at ECS Tuning | |||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444486 | Shop at ECS Tuning | |||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444487 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and M Aerodynamics package |
P337A=No S715A=No |
|||||||||
| 04 | Tailpipe tip, chrome | M PERFORMANCE | 1 | 18302449937 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Set tailpipe trim carbon | M PERFORMANCE | 1 | 18302449938 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Set tailpipe trim carbon | M PERFORMANCE | 1 | 18305B7A528 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of cut-out trims | M PERFORMANCE | 1 | 51122447337 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444485 | Shop at ECS Tuning | |||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444486 | Shop at ECS Tuning | |||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444487 | Shop at ECS Tuning | |||||
| 05 | Set of cut-out trims | M PERFORMANCE | 1 | 51122447339 | Shop at ECS Tuning | |||||
| 06 | Set of exhaust tailpipes | M PERFORMANCE | 1 | 18302449936 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444485 | Shop at ECS Tuning | |||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444486 | Shop at ECS Tuning | |||||
| 07 | Set tailpipe trim carbon | M PERFORMANCE | 1 | 18302447305 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 07 | Set of tailpipe tips, chrome | M PERFORMANCE | 1 | 18302448773 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of exhaust tailpipes | M PERFORMANCE | 1 | 18302449936 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444485 | Shop at ECS Tuning | |||||
| -- | Exhaust system diesel fuel | M PERFORMANCE | X | 18302444486 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G31 Touring 520d M Performance Parts?
- This technical diagram illustrates the M Performance Parts within the Retrofitting / conversion / accessories group for the 5 Series G31 Touring 520d produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust system diesel fuel (Part #18302444485).
- Which models use the hardware listed in this M Performance Parts?
- The hardware and components featured in the M Performance Parts are specific to the 5 Series G31 Touring 520d produced during 2019. These technical specifications ensure that parts like the Exhaust system diesel fuel (18302444485) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M Performance Parts assembly?
- Each item in the M Performance Parts corresponds to the numbered list below the illustration. For the 5 Series G31 Touring 520d, you can identify the Exhaust system diesel fuel by locating its position on the schematic, which then links to the official BMW part number 18302444485 for the Retrofitting / conversion / accessories section.
