Retrofit kit for Picnic Bench for BMW MINI Countryman F60 LCI One (2023)

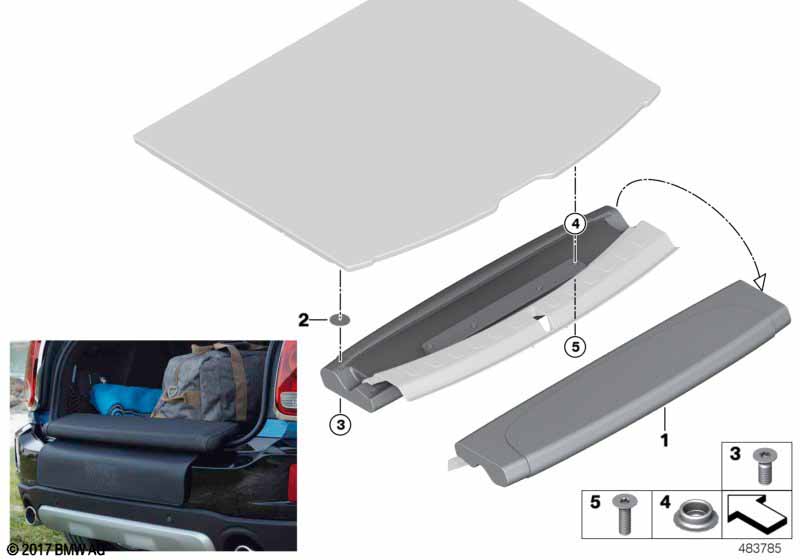

This Retrofit kit for Picnic Bench technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CAN BE RETROFITTED with all removable panels |
|||||||||
| 01 | Picnicbench | 1 | 51477433402 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Outer support | 1 | 51477465734 | Shop at ECS Tuning | ||||||
| -- | Push-button | 1 | 51477465737 | Shop at ECS Tuning | ||||||
| -- | Countersunk head screw | M4*12 | 1 | 51479909391 | Shop at ECS Tuning | |||||
| -- | Countersunk head screw | M4*20 | 1 | 07129909517 | Shop at ECS Tuning | |||||
| 02 | Outer support | 2 | 51477465734 | Shop at ECS Tuning | ||||||
| 03 | Countersunk head screw | M4*20 | 2 | 07129909517 | Shop at ECS Tuning | |||||
| 04 | Push-button | 4 | 51477465737 | Shop at ECS Tuning | ||||||
| 05 | Countersunk head screw | M4*12 | 4 | 51479909391 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 LCI One Retrofit kit for Picnic Bench?
- This technical diagram illustrates the Retrofit kit for Picnic Bench within the Retrofitting / conversion / accessories group for the MINI Countryman F60 LCI One produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Picnicbench (Part #51477433402).
- Which models use the hardware listed in this Retrofit kit for Picnic Bench?
- The hardware and components featured in the Retrofit kit for Picnic Bench are specific to the MINI Countryman F60 LCI One produced during 2023. These technical specifications ensure that parts like the Picnicbench (51477433402) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit kit for Picnic Bench assembly?
- Each item in the Retrofit kit for Picnic Bench corresponds to the numbered list below the illustration. For the MINI Countryman F60 LCI One, you can identify the Picnicbench by locating its position on the schematic, which then links to the official BMW part number 51477433402 for the Retrofitting / conversion / accessories section.
