Retrofit kit, tr. cpl., elec. swiveling for BMW 6 Series G32 GT LCI 630d (2022)

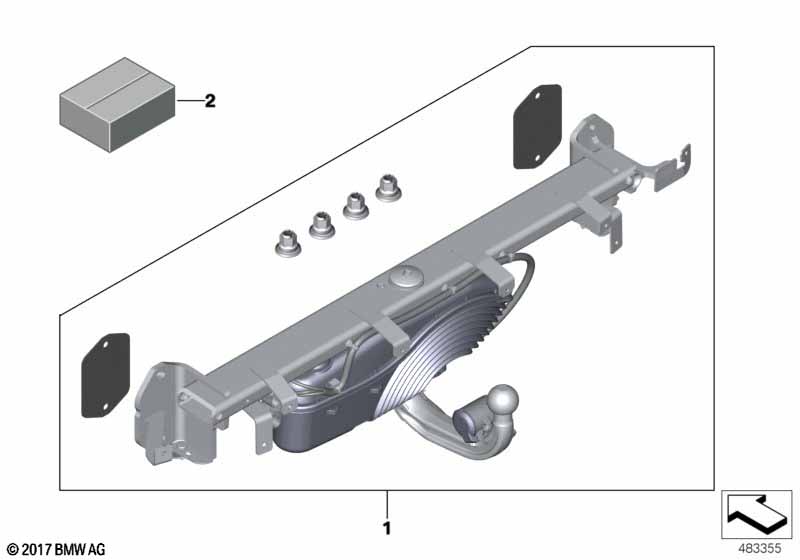

This Retrofit kit, tr. cpl., elec. swiveling technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT LCI 630d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | An exchange of the "Lüfterzarge mit Lüfter" and "Kühlmittelkühler / ausgelagerten Kühlmittelkühler" may be necessary. If there is a "Lüfterzarge mit Lüfter" and "Kühlmittelkühler / ausgelagerten Kühlmittelkühler" designated to the trailer hitch special equipment on the picture panel in the main group 17, then this part number has to be ordered and installed as well. If changing the fan, consult the BTE in EPC for the corresponding module and power distribution box. Exchanging the "power distribution/positive battery terminal distribution" may be necessary. If "power distribution/positive battery terminal distribution" is assigned to the trailer hitch optional equipment on the picture panel in main group 61, this part number must be ordered and installed. If no part number is assigned to the trailer hitch optional equipment, the "power distribution/positive battery terminal distribution" does not have to be replaced Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the EPC on that day and given to the customer. |
|||||||||
| For vehicles with Trailer coupling preparation and canberra-beige or canberrabeige Exklusivnaht/Keder |
S8SLA=No CY=Yes DO=Yes |
|||||||||
| 01 | Set of trailer couplings, electr. swivel | 1 | 71606875627 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Control unit for trailer hitch | 1 | 63115A056C9 | Shop at ECS Tuning | ||||||
| -- | Battery cable positive, below-floor | 1 | 61129388635 | Shop at ECS Tuning | ||||||
| -- | Socket cover | SCHWARZ 12V | 1 | 51477471780 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling preparation Only together with underfloor battery cable |
S8SLA=No |
|||||||||
| 02 | Retrofit kit, electr. additional parts | 1 | 71602448621 | Shop at ECS Tuning | ||||||
