Conversion, taillamps, facelift for BMW 4 Series F32 420d (2017)

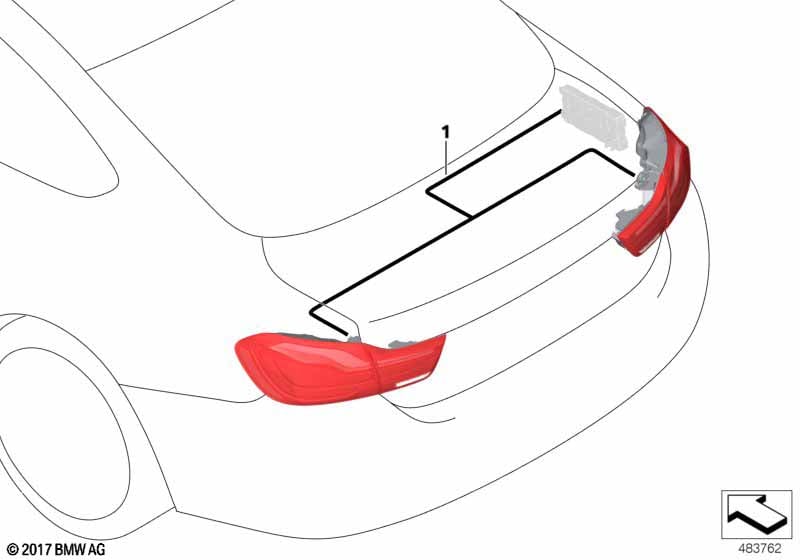

This Conversion, taillamps, facelift technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Retrofit with wiring harness and tail lights. Retrofit with installation instructions 01 29 2 456 074 only. |
|||||||||
| 01 | Wiring trunk lid | 1 | 61126830397 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Rear light in trunk lid, left | 1 | 63217426051 | Shop at ECS Tuning | ||||||
| -- | Rear light in trunk lid, right | 1 | 63217426052 | Shop at ECS Tuning | ||||||
| -- | Rear light in the side panel, left | 1 | 63218496523 | Shop at ECS Tuning | ||||||
| -- | Rear light in the side panel, right | 1 | 63218496524 | Shop at ECS Tuning | ||||||
| -- | Trim, drip rail, left | 1 | 51497474487 | Shop at ECS Tuning | ||||||
| -- | Trim, drip rail, right | 1 | 51497474488 | Shop at ECS Tuning | ||||||
| -- | Installation instructions | 1 | 01292456074 | Shop at ECS Tuning | ||||||
