Retrofit kit, rr light, facelift for BMW 2 Series F22 218d (2017)

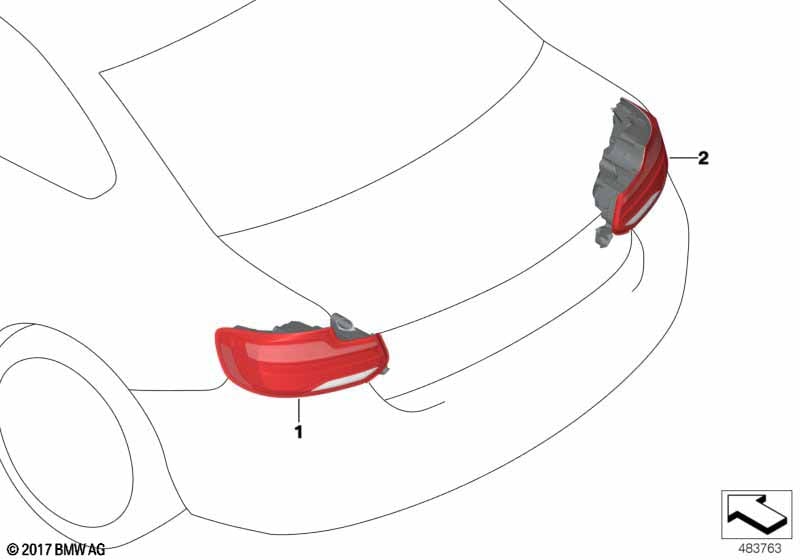

This Retrofit kit, rr light, facelift technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Retrofit must be encoded | |||||||||
| 01 | Tail light, LED, left | 1 | 63217420991 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 01 | Tail light, LED, left | BLACK LINE | 1 | 63219491591 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rep. kit for socket housing | 6 POL. | 2 | 61132359993 | Shop at ECS Tuning | |||||
| -- | Installation instructions | 1 | 01292458806 | Shop at ECS Tuning | ||||||
| 02 | Tail light, LED, right | 1 | 63217420992 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 02 | Tail light, LED, right | BLACK LINE | 1 | 63219491592 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rep. kit for socket housing | 6 POL. | 2 | 61132359993 | Shop at ECS Tuning | |||||
| -- | Installation instructions | 1 | 01292458806 | Shop at ECS Tuning | ||||||
