M Performance aerodynamics acc.parts for BMW 6 Series G32 GT 620dX (2020)

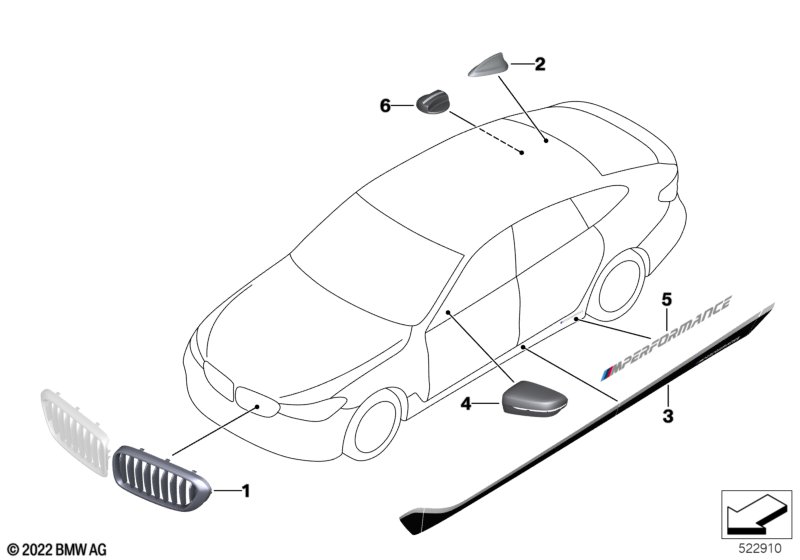

This M Performance aerodynamics acc.parts technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 620dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. Note: For Mainland China: Retrofitting not following GA-801 2019 is only allowed for use on racetrack and not for use on public roads according to the relevant retrofitting regulation. For G32 and G32N Trim air duct side panel CFRP, Outside mirror shrouds CFRP, Rocker panel covers and Aramid Antenna covers do not follow GA-801 2019. For G30: As front attachments are only released in combination with rear spoilers, they have to be treated as parts which do not follow GA-801 2019. |
|||||||||
| For vehicles with Night Vision with human recognition |
S6UKA=No |
|||||||||
| 01 | Fr.radiator grill black high gloss ri. | M PERFORMANCE | 1 | 51712445002 | Shop at ECS Tuning | |||||
| 01 | Fr.radiator grill black high gloss le. | M PERFORMANCE | 1 | 51712445003 | Shop at ECS Tuning | |||||
| 02 | Antenna cover aramide | M PERFORMANCE | 1 | 65205A59AB3 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | 2X KLEBER | 1 | 83192289287 | Shop at ECS Tuning | |||||
| 03 | Foil application Frozen Black left/right | M PERFORMANCE | 1 | 51142447018 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Decal kit | M PERFORMANCE | X | 51142413970 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 04 | Exterior mirror shroud, carbon, RHD, lft | M PERFORMANCE | 1 | 51162365977 | Shop at ECS Tuning | |||||
| 04 | Outside mirror shroud, carbon, RHD, rgt | M PERFORMANCE | 1 | 51162365978 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 05 | Decal kit | M PERFORMANCE | 1 | 51142413970 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Foil application Frozen Black left/right | M PERFORMANCE | X | 51142447018 | Shop at ECS Tuning | |||||
| 06 | Tank cap, cap, carbon | M PERFORMANCE | 1 | 16112472988 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
