BMW LM wheel cross-spoke 636 - 20" for BMW 5 Series G30 LCI 520d (2023)

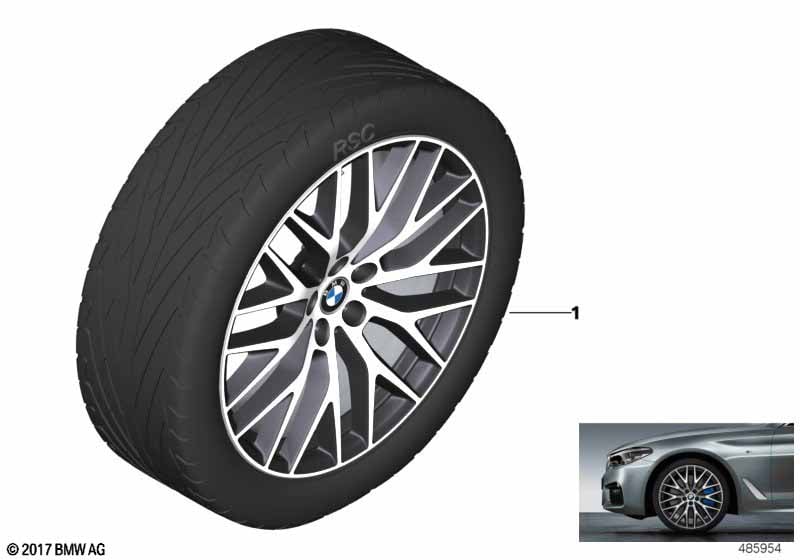

This BMW LM wheel cross-spoke 636 - 20" technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with Tire pressure display Runflat tires with emergency running properties Mixed tyres Front axle 245/35R20 95Y Rear axle 275/30R20 97Y Goodyear Eagle F1 Asymmetric 3 ROF Disk wheel in liquid black |
S2VBA=No |
|||||||||
| 01 | Tire and wheel, summer, liquid black | 1 | 36112420423 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display Runflat tires with emergency running properties Mixed tyres Front axle 245/35R20 95Y Rear axle 275/30R20 97Y Goodyear Eagle F1 Asymmetric 3 ROF Disk wheel in orbitgrey |
S2VBA=No |
|||||||||
| 01 | Tire & wheel set, summer, Orbitgrey | 1 | 36112420421 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Mixed tyres Front axle 245/35R20 95Y Rear axle 275/30R20 97Y Goodyear Eagle F1 Asymmetric 5 ROF Disk wheel in orbitgrey |
L807A=No S2VBA=Yes |
|||||||||
| 01 | TPM tire and wheel, summer, Orbitgrey | 1 | 36115A3E049 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Mixed tyres Front axle 245/35R20 95Y Rear axle 275/30R20 97Y Goodyear Eagle F1 Asymmetric 3 ROF Disk wheel in liquid black |
L807A=No S2VBA=Yes |
|||||||||
| 01 | TPC tire and wheel, summer, Liquid Black | 1 | 36112420424 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Mixed tyres Front axle 245/35R20 95Y Rear axle 275/30R20 97Y Goodyear Eagle F1 Asymmetric 3 ROF Disk wheel in orbitgrey |
L807A=No S2VBA=Yes |
|||||||||
| 01 | TPM tire and wheel, summer, Orbitgrey | 1 | 36112420422 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
