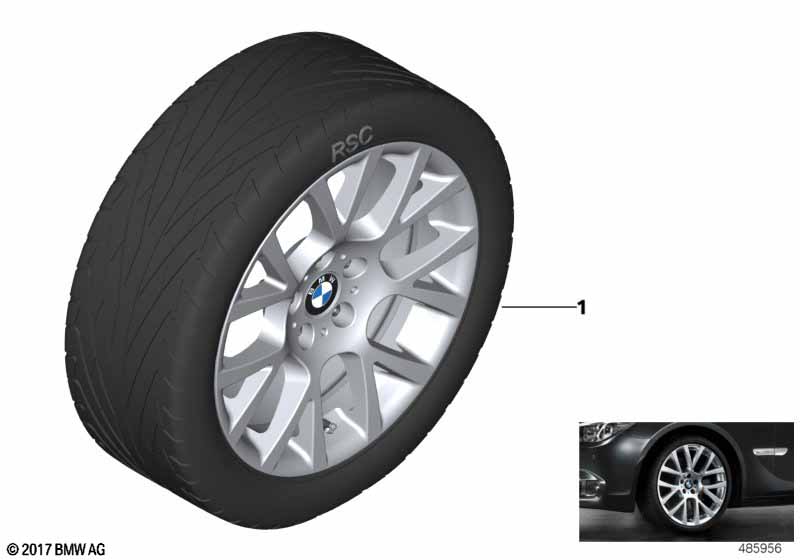

BMW LA wheel Double Spoke 238 - 20" for BMW 7 Series F01 LCI 750iX (2015)
This BMW LA wheel Double Spoke 238 - 20" technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 LCI 750iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. |
|||||||||
| For vehicles with National version japan and Tire pressure display Installed with RDC module 6 856 227 (generation 3.4.1 / singleframe)! No mixed installation permitted within a gear set with RDC module 6 798 872 (generation 3.4 / multiframe) and/or RDC module 6 874 830 (generation 3.8 / multiframe)! Runflat tires with emergency running properties Mixed tyres Vorderachse 245/40R20 99Y Rear axle 275/35R20 102Y Tyres Goodyear Excellence RSC |
L807A=No S2VBA=Yes |
|||||||||
| 01 | TPM LC, tire&wheel set, summer | 1 | 09/2010 | 36112287801 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Canada and Tire pressure display Installed with RDC module 6 856 227 (generation 3.4.1 / singleframe)! No mixed installation permitted within a gear set with RDC module 6 798 872 (generation 3.4 / multiframe) and/or RDC module 6 874 830 (generation 3.8 / multiframe)! Runflat tires with emergency running properties Mixed tyres Vorderachse 245/40R20 99Y Rear axle 275/35R20 102Y Tyres Goodyear Excellence RSC |
L838A=Yes S2VBA=Yes |
|||||||||
| 01 | TPM LC, tire&wheel set, summer | 1 | 09/2010 | 36112287801 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Canada and Tire pressure display Runflat tires with emergency running properties Mixed tyres Vorderachse 245/40R20 99Y Rear axle 275/35R20 102Y Tyres Goodyear Excellence RSC |
L838A=Yes S2VBA=No |
|||||||||
| 01 | Set complete alloy wheels summer | 1 | 36110445503 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
