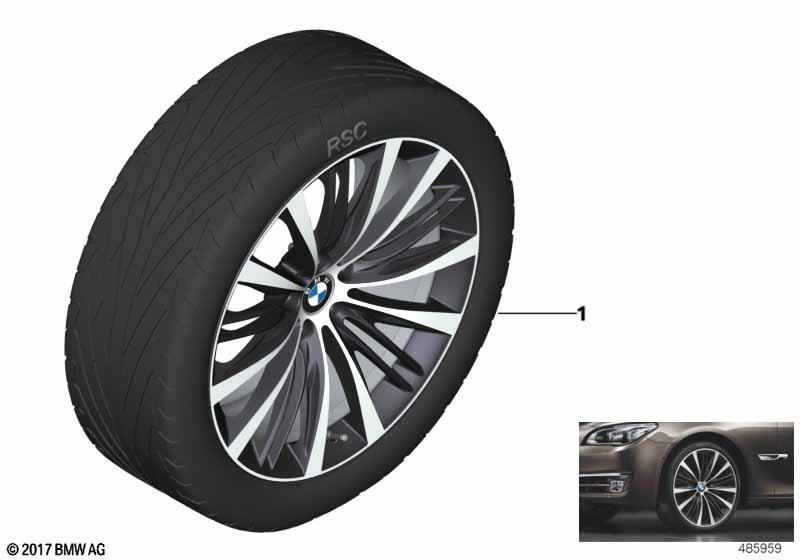

BMW LA wheel V-spoke 463 - 21" for BMW 7 Series F02 750Li (2011)
This BMW LA wheel V-spoke 463 - 21" technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with Tire pressure display Runflat tires with emergency running properties Mixed tyres Front axle 245/35R21 96Y Rear axle 275/30R21 98Y Tire Pirelli P ZERO RSC Disk wheel, ferricegrey |
S2VBA=No |
|||||||||
| 01 | Complete wheel set, summer Ferricgrey | 1 | 36112293845 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Tire pressure display Installed with RDC module 6 856 227 (generation 3.4.1 / singleframe)! No mixed installation permitted within a gear set with RDC module 6 798 872 (generation 3.4 / multiframe) and/or RDC module 6 874 830 (generation 3.8 / multiframe)! Runflat tires with emergency running properties Mixed tyres Front axle 245/35R21 96Y Rear axle 275/30R21 98Y Tire Pirelli P ZERO RSC Disk wheel, ferricegrey |
L807A=No S2VBA=Yes |
|||||||||
| 01 | RDC LC wheel/tire set, summer,ferricgrey | 1 | 09/2010 | 36112293846 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
