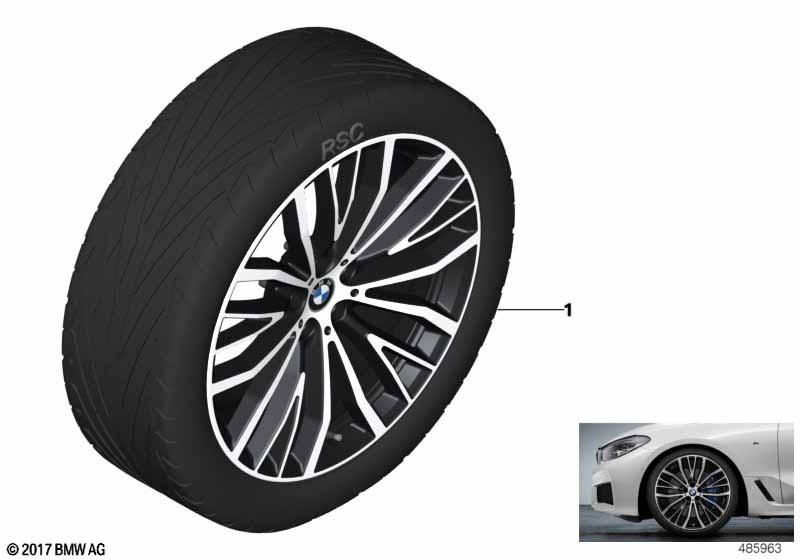

BMW LA wheel V-spoke 687 - 21" for BMW 6 Series G32 GT 630d (2020)
This BMW LA wheel V-spoke 687 - 21" technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with Tire pressure display Runflat tires with emergency running properties Mixed tyres Front axle 245/35R21 96Y Rear axle 275/30R21 98Y Tire Pirelli P ZERO RSC |
S2VBA=No |
|||||||||
| 01 | Wheel&tire set, summer, brilliant black | 1 | 36112449755 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Mixed tyres Front axle 245/35R21 96Y Rear axle 275/30R21 98Y Tire Pirelli P ZERO RSC |
L807A=No S2VBA=Yes |
|||||||||
| 01 | RDC Compl. set of black summer wheels | 1 | 36112458044 | ENDED | Shop at ECS Tuning | |||||
| 01 | RDC Compl. set of black summer wheels | 1 | 36112449756 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
