MINI LA wheel High Spoke 596 - 18" for BMW MINI F55 One (2017)

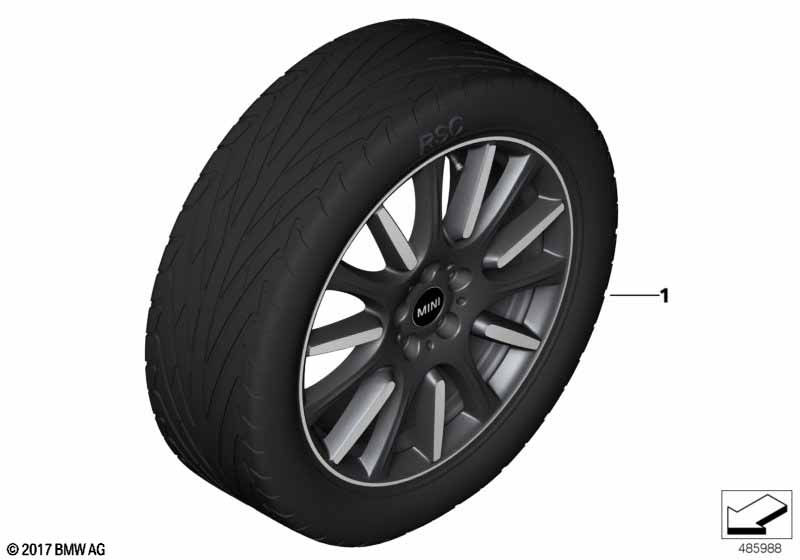

This MINI LA wheel High Spoke 596 - 18" technical drawing provides a detailed breakdown of the assembly for the MINI F55 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. |
|||||||||
| not suitable for | ||||||||||
| -- | Sports brake retrofit kit | F56 JCW | X | 34112352872 | TÜV 2354561 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire Pirelli Cinturato P7 RSC |
S2VBA=No SZZDA=No |
|||||||||
| 01 | Tire & wheel set, summer, Orbitgrey | 205/40R18 86W | 1 | 36112420415 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire Pirelli Cinturato P7 RSC |
L807A=No S2VBA=Yes SZZDA=No |
|||||||||
| 01 | RDCi wheel&tire Orbitgrey machine polish | 205/40R18 86W | 1 | 36112420416 | ENDED | Shop at ECS Tuning | ||||
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- ENDED = the part has been discontinued (no longer available).
