Winter wheel with tire V spoke 141 - 17" for BMW 1 Series E87 LCI 116d (2011)

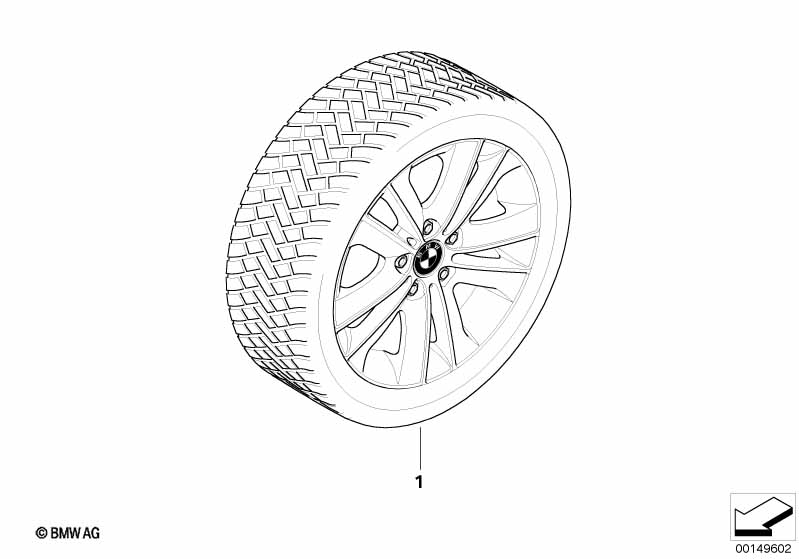

This Winter wheel with tire V spoke 141 - 17" technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 116d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. |
|||||||||
| Runflat tires with emergency running properties Tire M+S Bridgestone Blizzak LM25-RSC |
||||||||||
| 01 | Complete alloy wheel winter | 205/50R17 89H | 4 | 36112210807 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 116d Winter wheel with tire V spoke 141 - 17"?
- This technical diagram illustrates the Winter wheel with tire V spoke 141 - 17" within the Retrofitting / conversion / accessories group for the 1 Series E87 LCI 116d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Complete alloy wheel winter (Part #36112210807).
- Which models use the hardware listed in this Winter wheel with tire V spoke 141 - 17"?
- The hardware and components featured in the Winter wheel with tire V spoke 141 - 17" are specific to the 1 Series E87 LCI 116d produced during 2011. These technical specifications ensure that parts like the Complete alloy wheel winter (36112210807) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Winter wheel with tire V spoke 141 - 17" assembly?
- Each item in the Winter wheel with tire V spoke 141 - 17" corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 116d, you can identify the Complete alloy wheel winter by locating its position on the schematic, which then links to the official BMW part number 36112210807 for the Retrofitting / conversion / accessories section.
