Winter wheel with tire V-spoke 229 - 16" for BMW 1 Series E87 LCI 120i (2011)

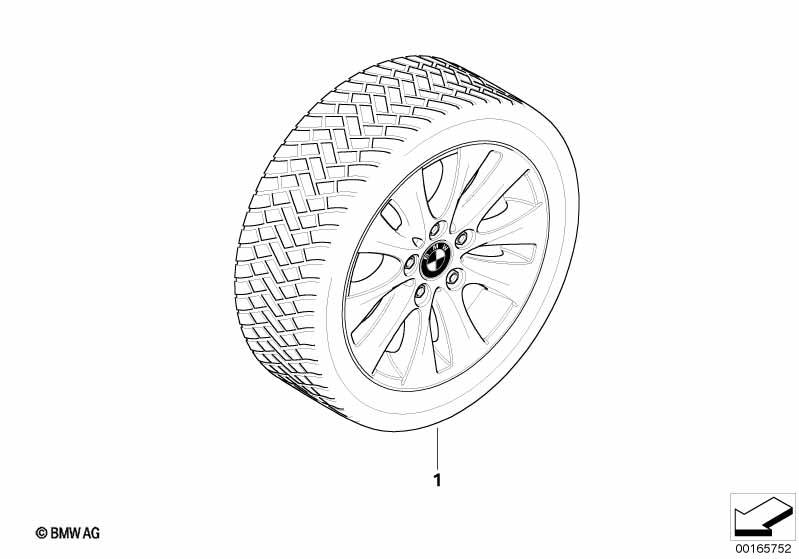

This Winter wheel with tire V-spoke 229 - 16" technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. |
|||||||||
| For vehicles with Tire with run-flat functionality and Sport brake system Standard tires without emergency running properties Tire M+S Goodyear Ultra Grip 7+ |
S258A=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 195/55R16 87H | 4 | 36112158450 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and Sport brake system Runflat tires with emergency running properties Tire M+S Bridgestone Blizzak LM25-RSC |
S258A=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 205/55R16 91H | 4 | 36112153827 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and Sport brake system Runflat tires with emergency running properties Tire M+S Continental TS 810 S SSR-RSC |
S258A=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 195/55R16 87H | 4 | 36110433287 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and Sport brake system Standard tires without emergency running properties Tire M+S Goodyear Ultra Grip 7+ |
S258A=Yes SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 195/55R16 87H | 4 | 36112158450 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with Tire with run-flat functionality and Sport brake system Runflat tires with emergency running properties Tire M+S Bridgestone Blizzak LM25-RSC |
S258A=Yes SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 205/55R16 91H | 4 | 36112153827 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and Sport brake system Runflat tires with emergency running properties Tire M+S Continental TS 810 S SSR-RSC |
S258A=Yes SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 195/55R16 87H | 4 | 36110433287 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
