Winter wheel w.tire multi-sp.284 - 17" for BMW 3 Series E90 LCI 320i (2011)

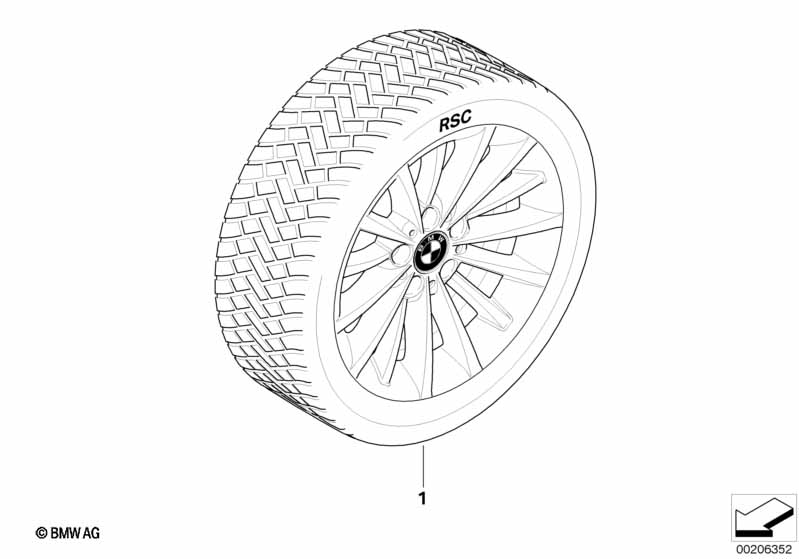

This Winter wheel w.tire multi-sp.284 - 17" technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. |
|||||||||
| Runflat tires with emergency running properties Tire M+S Bridgestone Blizzak LM25-RSC |
||||||||||
| 01 | Complete alloy wheel winter | 225/45R17 94V | 4 | 36112159852 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
