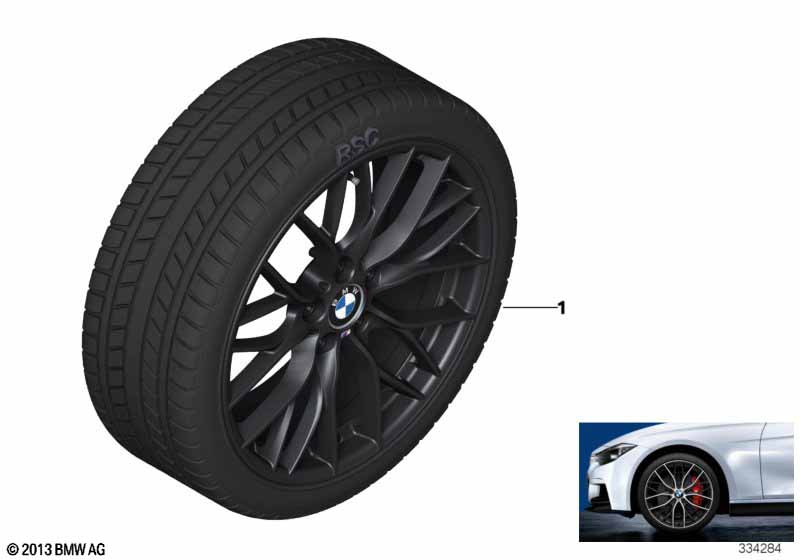

Winter wheel w.tire M doub.sp.405M-18" for BMW 4 Series F32 420d (2017)
This Winter wheel w.tire M doub.sp.405M-18" technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and National version China |
L807A=No L8AAA=No |
||||||||
| For vehicles with Tire pressure display Runflat tires with emergency running properties Tire M+S Pirelli W240 Sotto Zero RSC Disk wheel, black, matt |
S2VBA=Yes |
|||||||||
| 01 | RDCi wheel & tire, winter, black matt | 225/45R18 95V | 4 | 03/2014 | 36112289748 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
