Winter wheel with tire V-spoke 413 - 17" for BMW 3 Series F30 328iX (2015)

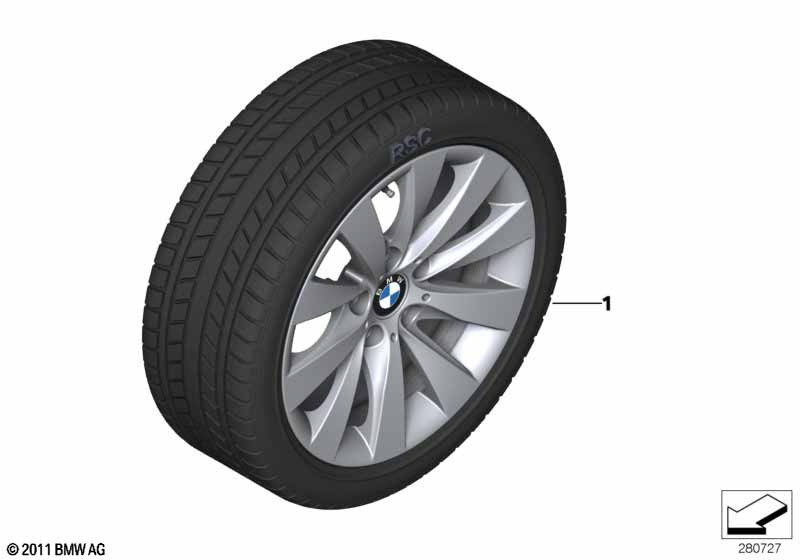

This Winter wheel with tire V-spoke 413 - 17" technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 328iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and National version China |
L807A=No L8AAA=No |
||||||||
| For vehicles with M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Dunlop SP Winter Sport 4D ROF Disk wheel, silver |
S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/50R17 94H | 4 | 03/2014 | 36112464904 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Reifen M+S Pirelli W210 Sotto Zero RSC Disk wheel, silver |
S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/50R17 94H | 4 | 03/2014 | 36112289745 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Bridgestone Blizzak LM001 RFT Disk wheel, black |
S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, black | 225/50R17 94H | 4 | 03/2014 | 36112448006 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Bridgestone Blizzak LM001 RFT Disk wheel, silver |
S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/50R17 94H | 4 | 03/2014 | 36112448005 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
