Winter wheel w.tire star sp.391 - 16" for BMW 4 Series F32 420d (2017)

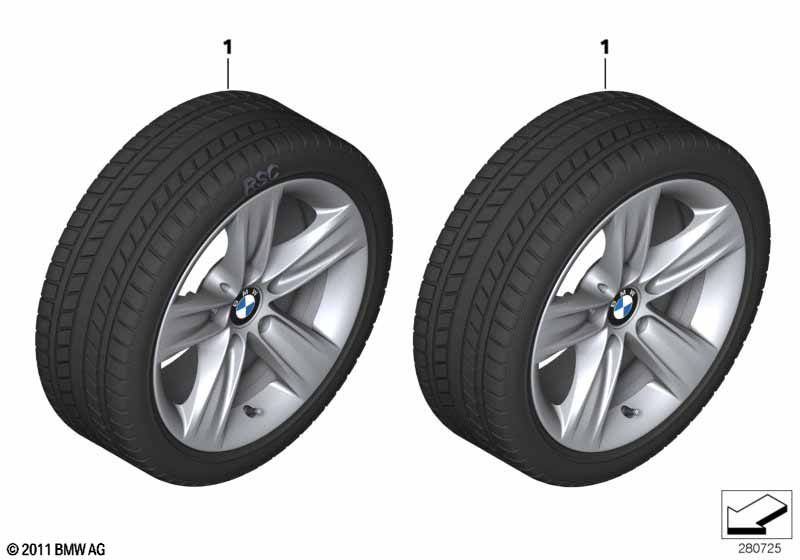

This Winter wheel w.tire star sp.391 - 16" technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| not suitable for | ||||||||||
| -- | Retrofit kit for Sport brakes, red | M PERFORMANCE | X | 34112221445 | ENDED, +core, TÜV 2231936 | Shop at ECS Tuning | ||||
| -- | Retrofit kit for Sport brakes, yellow | "M PERFORMANCE" | X | 34112221446 | ENDED, +core, TÜV 2231936 | Shop at ECS Tuning | ||||
| -- | Retrofit kit for Sport brakes, orange | "M PERFORMANCE" | X | 34112221447 | ENDED, +core, TÜV 2231936 | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire M+S Dunlop SP Winter Sport 4D ROF |
S258A=No S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112304699 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire M+S Continental Winter Contact TS 830P SSR |
S258A=No S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112220158 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Tire M+S Pirelli W210 Sottozero S2 |
S258A=No S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112220154 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Reifen M+S Bridgestone Blizzak LM32 |
S258A=No S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112220150 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Tire M+S Dunlop SP Winter Sport 4D |
S258A=No S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112304697 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Tire M+S Continental Winter Contact TS 830P |
S258A=No S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112220151 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire M+S Bridgestone Blizzak LM32 RFT |
S258A=No S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112220156 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire M+S Dunlop SP Winter Sport 4D ROF |
S258A=Yes S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112304699 | ENDED, TÜV 2297455 | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire M+S Continental Winter Contact TS 830P SSR |
S258A=Yes S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112220158 | ENDED, TÜV 2297455 | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Tire M+S Pirelli W210 Sottozero S2 |
S258A=Yes S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112220154 | ENDED, TÜV 2297455 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Reifen M+S Bridgestone Blizzak LM32 |
S258A=Yes S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112220150 | ENDED, TÜV 2297455 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Tire M+S Dunlop SP Winter Sport 4D |
S258A=Yes S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112304697 | ENDED, TÜV 2297455 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Tire M+S Continental Winter Contact TS 830P |
S258A=Yes S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112220151 | ENDED, TÜV 2297455 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire M+S Bridgestone Blizzak LM32 RFT |
S258A=Yes S2NHA=No S2VBA=No SZP1A=No |
|||||||||
| 01 | Complete alloy wheel winter | 225/55R16 95H | 4 | 36112220156 | ENDED, TÜV 2297455 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire M+S Dunlop SP Winter Sport 4D ROF |
L807A=No S258A=Yes S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/55R16 95H | 4 | 03/2014 | 36112289742 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Dunlop SP Winter Sport 4D ROF |
L807A=No S258A=Yes S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/55R16 95H | 4 | 03/2014 | 36112411437 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Tire M+S Dunlop SP Winter Sport 4D |
L807A=No S258A=Yes S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/55R16 95H | 4 | 03/2014 | 36112289741 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 03/2014 | 71102333674 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire M+S Bridgestone Blizzak LM32 RFT |
L807A=No S258A=Yes S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/55R16 95H | 4 | 03/2014 | 36112289697 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire M+S Dunlop SP Winter Sport 4D ROF |
L807A=No S258A=No S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/55R16 95H | 4 | 03/2014 | 36112289742 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Dunlop SP Winter Sport 4D ROF |
L807A=No S258A=No S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/55R16 95H | 4 | 03/2014 | 36112411437 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Tire M+S Dunlop SP Winter Sport 4D |
L807A=No S258A=No S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/55R16 95H | 4 | 03/2014 | 36112289741 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Runflat tires with emergency running properties Tire M+S Bridgestone Blizzak LM32 RFT |
L807A=No S258A=No S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/55R16 95H | 4 | 03/2014 | 36112289697 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
