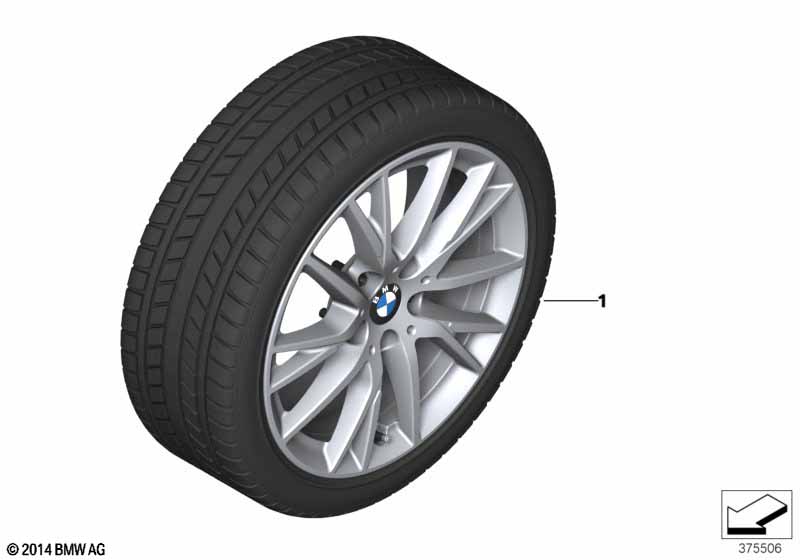

Winter wheel with tire Y-spoke 489 - 17" for BMW 2 Series F45 Active Tourer LCI 220i (2018)
This Winter wheel with tire Y-spoke 489 - 17" technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with Tire with run-flat functionality and Tire pressure display Standard tires without emergency running properties Pirelli Snowcontrol Series III |
S258A=Yes S2VBA=No |
|||||||||
| 01 | Wheel&tire winter Orbitgrey machine pol. | 195/55R17 92H | 4 | 36112408966 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with Tire with run-flat functionality and Tire pressure display Standard tires without emergency running properties Pirelli Snowcontrol Series III |
S258A=No S2VBA=No |
|||||||||
| 01 | Wheel&tire winter Orbitgrey machine pol. | 195/55R17 92H | 4 | 36112408966 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire with run-flat functionality and Tire pressure display Standard tires without emergency running properties Pirelli Snowcontrol Series III |
L807A=No S258A=Yes S2VBA=Yes |
|||||||||
| 01 | RDCi wheel&tire, wntr Orbitgrey polished | 195/55R17 92H | 4 | 36112408967 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Tire with run-flat functionality and Tire pressure display Standard tires without emergency running properties Pirelli Snowcontrol Series III |
L807A=No S258A=No S2VBA=Yes |
|||||||||
| 01 | RDCi wheel&tire, wntr Orbitgrey polished | 195/55R17 92H | 4 | 36112408967 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
