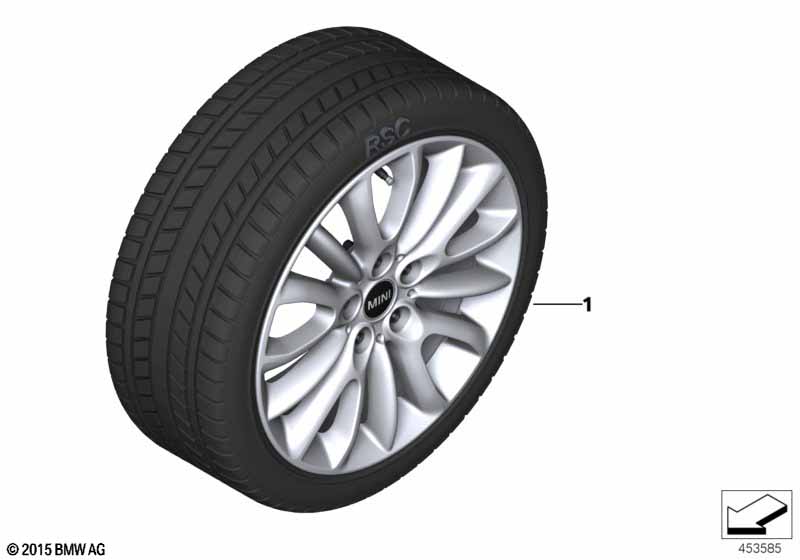

Winter wheel w.tire net sp.519 - 17" for BMW MINI Clubman F54 Cooper (2019)
This Winter wheel w.tire net sp.519 - 17" technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and National version China |
L807A=No L8AAA=No |
||||||||
| not suitable for | ||||||||||
| -- | Sports brake retrofit kit | F54 JCW | X | 34112360181 | TÜV 2411012 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display and Sport brake system Runflat tires with emergency running properties Dunlop SP Winter Sport 4D ROF |
S2VBA=Yes SZZDA=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/45R17 91H | 4 | 36112409043 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and Sport brake system Runflat tires with emergency running properties Pirelli Winter Sottozero 3 r-f |
S2VBA=Yes SZZDA=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 225/45R17 91H | 4 | 36112456819 | ENDED | Shop at ECS Tuning | ||||
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- ENDED = the part has been discontinued (no longer available).
