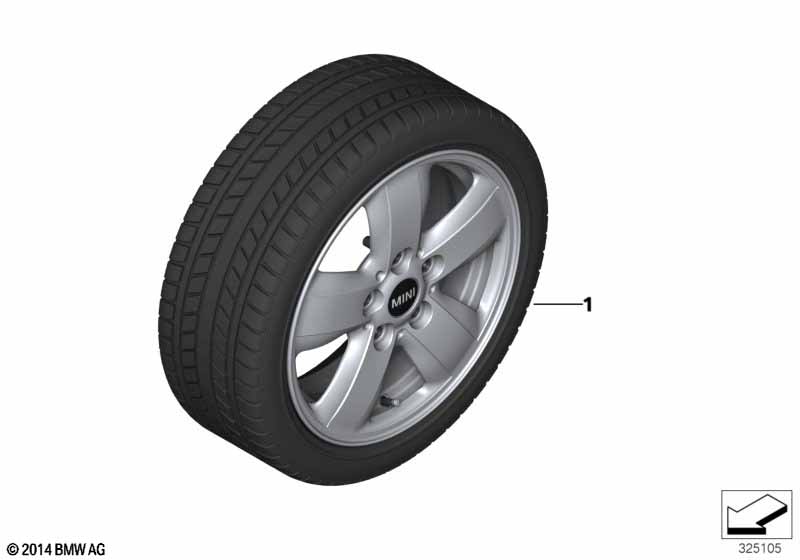

Winter wheel w.tire heli sp.492 - 15" for BMW MINI F55 One (2017)
This Winter wheel w.tire heli sp.492 - 15" technical drawing provides a detailed breakdown of the assembly for the MINI F55 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| not suitable for | ||||||||||
| -- | Sports brake retrofit kit | F56 JCW | X | 34112352872 | TÜV 2354561 | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and Tire pressure display and Sport brake system Standard tires without emergency running properties Pirelli W210 Snowcontrol Serie 3 |
S258A=No S2VBA=No SZZDA=No |
|||||||||
| 01 | Complete alloy wheel winter | 175/65R15 84H | 4 | 11/2017 | 36112289849 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Tire with run-flat functionality and Tire pressure display and Sport brake system Standard tires without emergency running properties Pirelli W210 Snowcontrol Serie 3 |
S258A=Yes S2VBA=No SZZDA=No |
|||||||||
| 01 | Complete alloy wheel winter | 175/65R15 84H | 4 | 11/2017 | 36112289849 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | MINI | 1 | 11/2017 | 71102333675 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire with run-flat functionality and Tire pressure display and Sport brake system Standard tires without emergency running properties Pirelli W210 Snowcontrol Serie 3 |
L807A=No S258A=No S2VBA=Yes SZZDA=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 175/65R15 84H | 4 | 11/2017 | 36112349703 | ENDED | Shop at ECS Tuning | |||
| 01 | RDCi wheel & tire, winter, light alloy | 175/65R15 88H | 4 | 03/2021 | 36112460622 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Tire with run-flat functionality and Tire pressure display and Sport brake system Standard tires without emergency running properties Michelin Alpin A4 |
L807A=No S258A=No S2VBA=Yes SZZDA=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 175/65R15 88H | 4 | 03/2021 | 36115A279F9 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Tire with run-flat functionality and Tire pressure display and Sport brake system Standard tires without emergency running properties Pirelli W210 Snowcontrol Serie 3 |
L807A=No S258A=Yes S2VBA=Yes SZZDA=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 175/65R15 84H | 4 | 11/2017 | 36112349703 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | MINI | 1 | 11/2017 | 71102333675 | Shop at ECS Tuning | ||||
| 01 | RDCi wheel & tire, winter, light alloy | 175/65R15 88H | 4 | 03/2021 | 36112460622 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | MINI | 1 | 03/2021 | 71102333675 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire with run-flat functionality and Tire pressure display and Sport brake system Standard tires without emergency running properties Michelin Alpin A4 |
L807A=No S258A=Yes S2VBA=Yes SZZDA=No |
|||||||||
| 01 | RDCi wheel & tire, winter, light alloy | 175/65R15 88H | 4 | 03/2021 | 36115A279F9 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | MINI | 1 | 03/2021 | 71102333675 | Shop at ECS Tuning | ||||
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- ENDED = the part has been discontinued (no longer available).
