Winter wheel w.tire M doub.sp.648M-20" for BMW 7 Series G11 730d (2019)

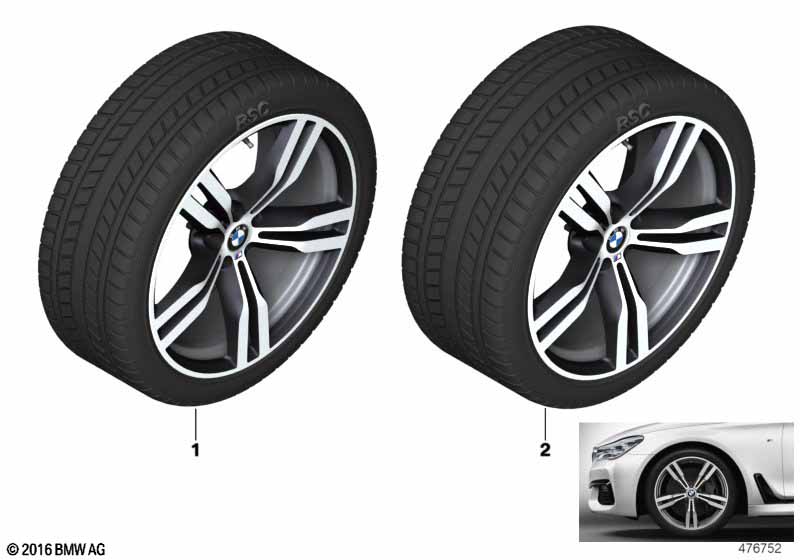

This Winter wheel w.tire M doub.sp.648M-20" technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Pirelli W240 Sottozero Serie 2 r-f Front axle |
L807A=No S2VBA=Yes |
|||||||||
| 01 | TPM wheel&tire winter orbit grey | 245/40R20 99V | 2 | 36112444939 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Pirelli W240 Sottozero Serie 2 r-f Rear axle |
L807A=No S2VBA=Yes |
|||||||||
| 02 | TPM wheel&tire winter orbit grey | 275/35R20 102V | 2 | 36112444940 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
