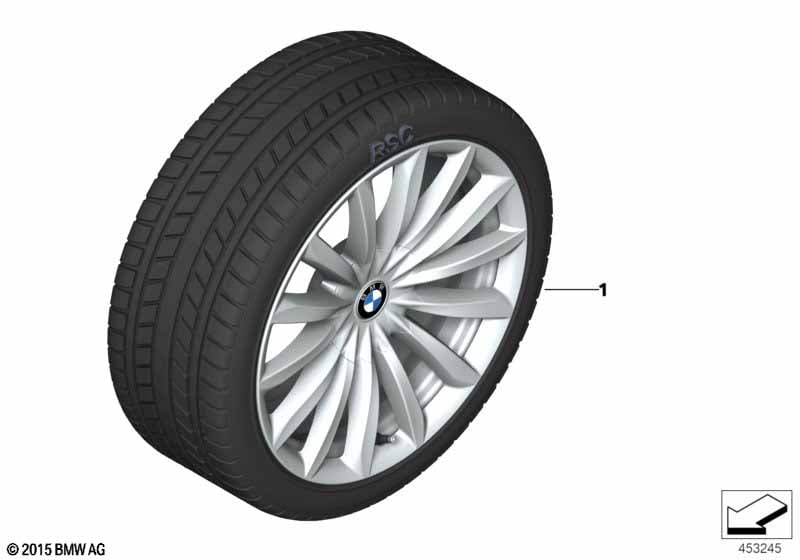

Winter wheel with tire V-spoke 620 - 19" for BMW 7 Series G12 730LdX (2018)
This Winter wheel with tire V-spoke 620 - 19" technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| not suitable for | ||||||||||
| -- | Retrofit kit for Sport brakes, red | 19" M PERF. | X | 34112289348 | TÜV 2450650, TÜV 2461248, TÜV 2462557 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Tire Pirelli Winter Sottozero 3 r-f |
L807A=No S2VBA=Yes |
|||||||||
| 01 | RDC wheel & tire set, winter light alloy | 245/45R19 102V | 4 | 36112409008 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Goodyear Ultra Grip 8 Performance ROF |
L807A=No S2VBA=Yes |
|||||||||
| 01 | RDC wheel & tire set, winter light alloy | 245/45R19 102V | 4 | 36112464918 | ENDED | Shop at ECS Tuning | ||||
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- ENDED = the part has been discontinued (no longer available).
