Winter wheel w.tire M doub.sp.664M-19" for BMW 5 Series G30 520d (2020)

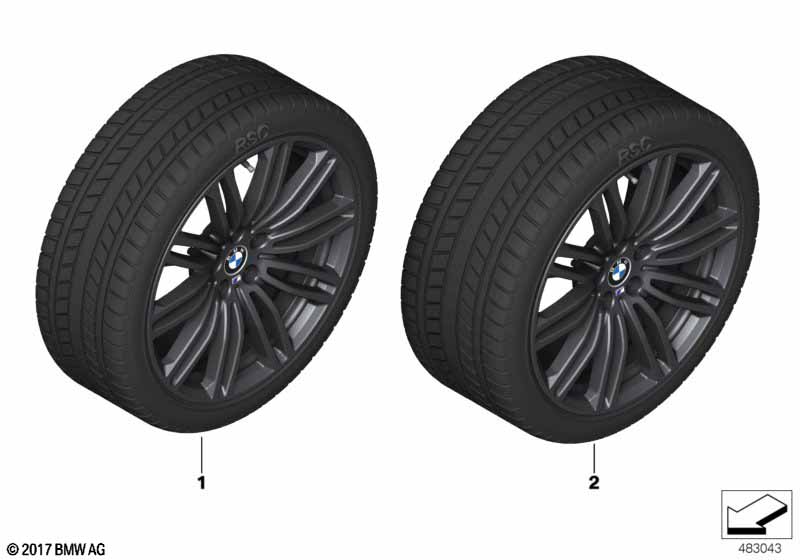

This Winter wheel w.tire M doub.sp.664M-19" technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Pirelli Winter Sottozero 3 r-f |
L807A=No S2VBA=Yes |
|||||||||
| 01 | TPM tire & wheel winter black | 245/40R19 98V | 4 | 36110048022 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Pirelli Winter Sottozero 3 r-f only for front axle |
L807A=No S2VBA=Yes |
|||||||||
| 01 | TPM tire & wheel winter black | 245/40R19 98V | 2 | 11/2017 | 36110048022 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Tire pressure display Runflat tires with emergency running properties Pirelli Winter Sottozero 3 r-f only for rear axle |
L807A=No S2VBA=Yes |
|||||||||
| 02 | TPM tire & wheel winter black | 275/35R19 100V | 2 | 11/2017 | 36110053503 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
