Winter wheel with tire V-spoke 631 - 17" for BMW 5 Series G31 Touring 530i (2018)

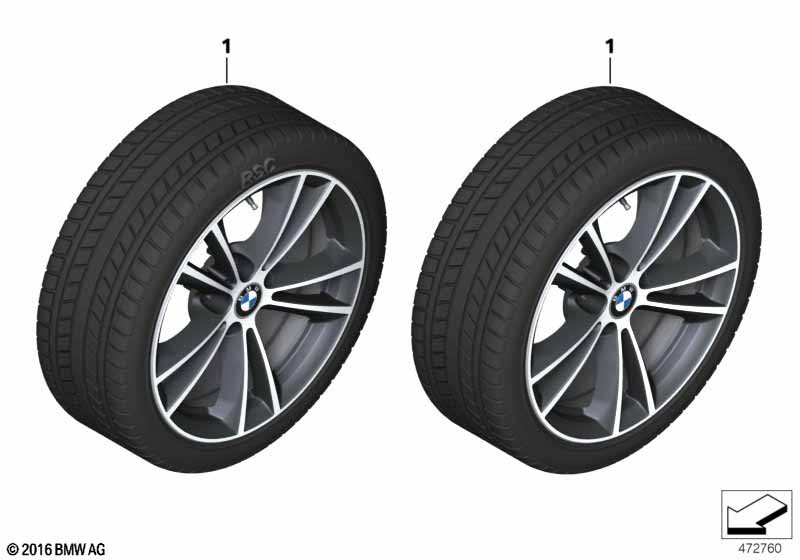

This Winter wheel with tire V-spoke 631 - 17" technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and National version China and Tire pressure display |
L807A=No L8AAA=No S2VBA=Yes |
||||||||
| not suitable for | ||||||||||
| -- | Retrofit kit for Sport brakes, red | 19" M PERF. | X | 34112289348 | TÜV 2450650, TÜV 2461248, TÜV 2462557 | Shop at ECS Tuning | ||||
| Runflat tires with emergency running properties Continental WinterContact TS 850 P SSR |
||||||||||
| 01 | RDC wheel & tire set winter Ferricgrey | 225/55R17 97H | 4 | 36112464944 | ENDED | Shop at ECS Tuning | ||||
| Runflat tires with emergency running properties Dunlop SP Winter Sport 4D ROF |
||||||||||
| 01 | TPM WWT ferric grey burnished | 225/55R17 97H | 4 | 36110048016 | ENDED | Shop at ECS Tuning | ||||
| Runflat tires with emergency running properties Michelin Alpin 5 ZP |
||||||||||
| 01 | RDC wheel & tire set winter Ferricgrey | 225/55R17 97H | 4 | 36110049750 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality Standard tires without emergency running properties Continental WinterContact TS 850 P |
S258A=Yes |
|||||||||
| 01 | TPM WWT ferric grey burnished | 225/55R17 97H | 4 | 36112464943 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with Tire with run-flat functionality Standard tires without emergency running properties Pirelli Winter Sottozero 3 |
S258A=Yes |
|||||||||
| 01 | TPM WWT ferric grey burnished | 225/55R17 97H | 4 | 36115A29356 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with Tire with run-flat functionality Standard tires without emergency running properties Dunlop SP Winter Sport 4D |
S258A=Yes |
|||||||||
| 01 | TPM WWT ferric grey burnished | 225/55R17 97H | 4 | 36110048015 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with Tire with run-flat functionality Standard tires without emergency running properties Continental WinterContact TS 850 P |
S258A=No |
|||||||||
| 01 | TPM WWT ferric grey burnished | 225/55R17 97H | 4 | 36112464943 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality Standard tires without emergency running properties Pirelli Winter Sottozero 3 |
S258A=No |
|||||||||
| 01 | TPM WWT ferric grey burnished | 225/55R17 97H | 4 | 36115A29356 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality Standard tires without emergency running properties Dunlop SP Winter Sport 4D |
S258A=No |
|||||||||
| 01 | TPM WWT ferric grey burnished | 225/55R17 97H | 4 | 36110048015 | ENDED | Shop at ECS Tuning | ||||
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- ENDED = the part has been discontinued (no longer available).
