Floor Mat Locks for BMW 5 Series E39 528i (1999)

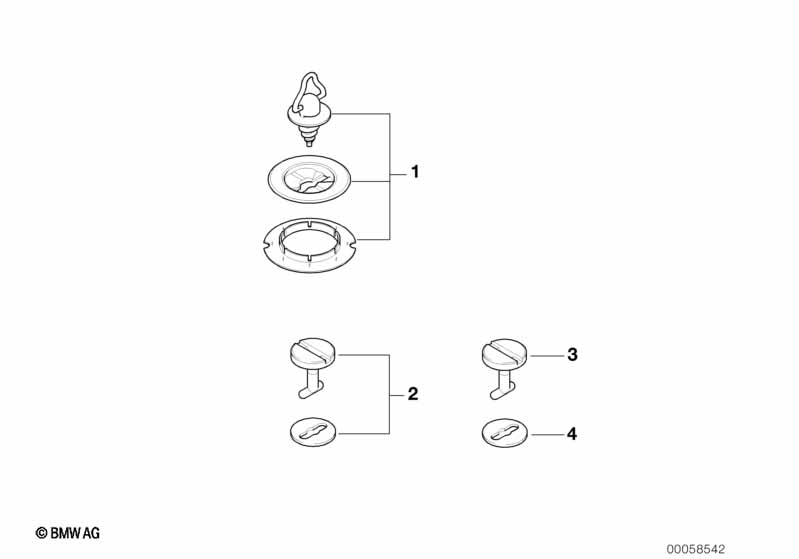

This Floor Mat Locks technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Lock 24,5mm | ANTHRAZIT | 1 | 51478116564 | $1.82 | Shop at ECS Tuning | ||||
| 03 | Lock 24,5mm | GRAU | 1 | 51478183027 | $1.82 | Shop at ECS Tuning | ||||
| 03 | Lock 24,5mm | MARINEBLAU | 1 | 51478183028 | $1.82 | ENDED | Shop at ECS Tuning | |||
| 03 | Lock 24,5mm | SANDBEIGE | 1 | 51478183029 | $1.82 | Shop at ECS Tuning | ||||
| 03 | Lock 21,5mm | ANTHRAZIT | 1 | 82599402196 | $1.11 | Shop at ECS Tuning | ||||
| 04 | Circlip | 1 | 51471881521 | $0.39 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
