BMW lt.-al.wheel M dbl.spoke 766M - 19" for BMW 2 Series F45 Active Tourer LCI 220dX (2021)

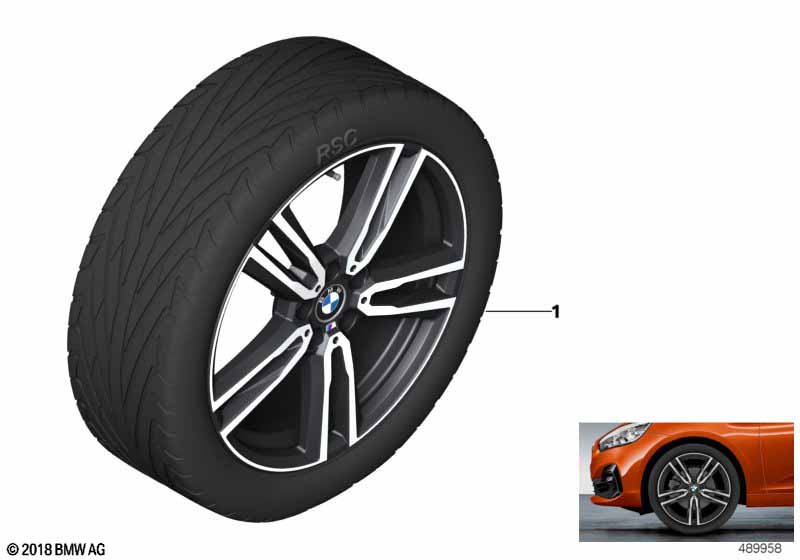

This BMW lt.-al.wheel M dbl.spoke 766M - 19" technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 220dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with National version Korea and National version japan and Tire pressure display Runflat tires with emergency running properties Pirelli P Zero r-f |
L802A=No L807A=No S2VBA=Yes |
|||||||||
| 01 | RDC tire/wheel set, summer, black matt | 225/40R19 93Y | 1 | 36112459603 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
