M Performance aerodynamics acc.parts for BMW 3 Series G20 Sedan 320d (2021)

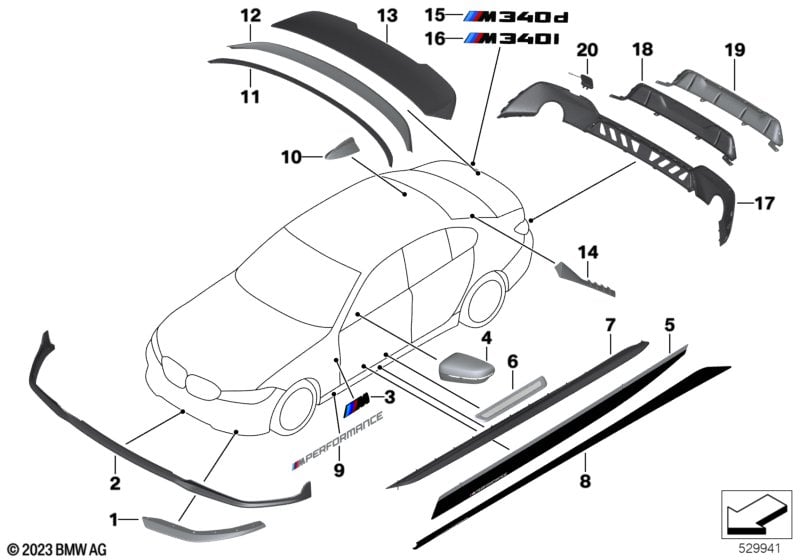

This M Performance aerodynamics acc.parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. Note: For Mainland China: Retrofitting not following GA-801 2019 is only allowed for use on racetrack and not for use on public roads according to the relevant retrofitting regulation. For G20 and G21 Mirror Caps, Side Sill Attachments, Roof Antenna Cover and Rear Spoilers do not follow GA-801 2019. As front attachments are only released in combination with rear spoilers, they have to be treated as parts which do not follow GA-801 2019. |
|||||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Front splitter | M PERFORMANCE | 1 | 51192455835 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Front splitter | M PERFORMANCE | 1 | 51192455836 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Expanding rivet | 6 | 51717002953 | $0.78 | Shop at ECS Tuning | |||||
| -- | Front attachment, black, high-gloss | M PERFORMANCE | 1 | 51192455832 | Shop at ECS Tuning | |||||
| -- | Rear spoiler, Carbon, ECE | M PERFORMANCE | 1 | 51192458369 | Shop at ECS Tuning | |||||
| 02 | Front attachment, black, high-gloss | M PERFORMANCE | 1 | 51192455832 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For CA: Instead of adhesive 5A326D0, use part number 2289286. Clean with solvent cleaner 0417324 first and prime part number 2446515. For HK: Instead of adhesive 5A326D0, use part number 5B34BD7 . Clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For CA: Instead of adhesive 5A326D0, use part number 2289286. Clean with solvent cleaner 0417324 first and prime part number 2446515. For HK: Instead of adhesive 5A326D0, use part number 5B34BD7 . Clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Expanding rivet | 12 | 51717002953 | $0.78 | Shop at ECS Tuning | |||||
| For CA: Instead of adhesive 5A326D0, use part number 2289286. Clean with solvent cleaner 0417324 first and prime part number 2446515. For HK: Instead of adhesive 5A326D0, use part number 5B34BD7 . Clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Rear spoiler, Carbon, ECE | M PERFORMANCE | 1 | 51192458369 | Shop at ECS Tuning | |||||
| For CA: Instead of adhesive 5A326D0, use part number 2289286. Clean with solvent cleaner 0417324 first and prime part number 2446515. For HK: Instead of adhesive 5A326D0, use part number 5B34BD7 . Clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Fillister head self-tapping screw | 4 | 07147133553 | $0.16 | Shop at ECS Tuning | |||||
| For CA: Instead of adhesive 5A326D0, use part number 2289286. Clean with solvent cleaner 0417324 first and prime part number 2446515. For HK: Instead of adhesive 5A326D0, use part number 5B34BD7 . Clean with solvent cleaner 0417324 first. |
||||||||||
| 03 | M logos side high-gloss black | M PERFORMANCE | 1 | 51145A4B372 | Shop at ECS Tuning | |||||
| 04 | Outside mirror shroud, carbon, RHD, rgt | M PERFORMANCE | 1 | 51162462826 | Shop at ECS Tuning | |||||
| 04 | Exterior mirror shroud, carbon, RHD, lft | M PERFORMANCE | 1 | 51162462827 | Shop at ECS Tuning | |||||
| 05 | Foil application Frozen Black left/right | M PERFORMANCE | 1 | 51142458194 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Decal kit | M PERFORMANCE | X | 51142461811 | Shop at ECS Tuning | |||||
| 06 | Cover, entrance | M PERFORMANCE | 2 | 51472472520 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package Only in conjunction with item 5 or item 9 |
S715A=Yes |
|||||||||
| 07 | Rocker panel cover, black, high-gloss rt | M PERFORMANCE | 1 | 51192455896 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 07 | Sill attachment part black high-gloss lt | M PERFORMANCE | 1 | 51192455897 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For CA: Instead of adhesive 5A326D0, use part number 2289286. Clean with solvent cleaner 0417324 first and prime part number 2446515. For HK: Instead of adhesive 5A326D0, use part number 5B34BD7 . Clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For CA: Instead of adhesive 5A326D0, use part number 2289286. Clean with solvent cleaner 0417324 first and prime part number 2446515. For HK: Instead of adhesive 5A326D0, use part number 5B34BD7 . Clean with solvent cleaner 0417324 first. |
||||||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 08 | Foil applicat.for side sill Frozen Black | M PERFORMANCE | 1 | 51142458236 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decal kit | M PERFORMANCE | 1 | 51142461811 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Rocker panel cover, black, high-gloss rt | M PERFORMANCE | X | 51192455896 | Shop at ECS Tuning | |||||
| -- | Sill attachment part black high-gloss lt | M PERFORMANCE | X | 51192455897 | Shop at ECS Tuning | |||||
| 09 | Decal kit | M PERFORMANCE | 1 | 51142461811 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Foil application Frozen Black left/right | M PERFORMANCE | X | 51142458194 | Shop at ECS Tuning | |||||
| 10 | Antenna cover aramide | M PERFORMANCE | 1 | 65205A59AB5 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| 11 | Rear spoiler, black, matt | M PERFORMANCE | 1 | 51192455880 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. Rear spoiler is equipped with adhesive tape for assembly. The ends must also be secured with adhesive. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. Rear spoiler is equipped with adhesive tape for assembly. The ends must also be secured with adhesive. |
||||||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 12 | Rear spoiler, Carbon, ECE | M PERFORMANCE | 1 | 51192458369 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Front attachment, black, high-gloss | M PERFORMANCE | 1 | 51192455832 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| 17 | Bumper trim black high-gloss rear | M PERFORMANCE | 1 | 51192455856 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rear diffusor, black high-gloss | M PERFORMANCE | 1 | 51192455821 | Shop at ECS Tuning | |||||
| 18 | Rear diffusor, black high-gloss | M PERFORMANCE | 1 | 51192455821 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bumper trim black high-gloss rear | M PERFORMANCE | 1 | 51192455856 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling and M Aerodynamics package |
S3ACA=No S715A=Yes |
|||||||||
| 19 | Rear diffuser, Carbon | M PERFORMANCE | 1 | 51192455819 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bumper trim black high-gloss rear | M PERFORMANCE | 1 | 51192455856 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 20 | Cover f.towing eye black high-gloss rear | ERSATZ | 1 | 51122455862 | Shop at ECS Tuning | |||||
