BMW LA wheel double spoke 549 - 17" for BMW 2 Series F46 Gran Tourer LCI 216d (2018)

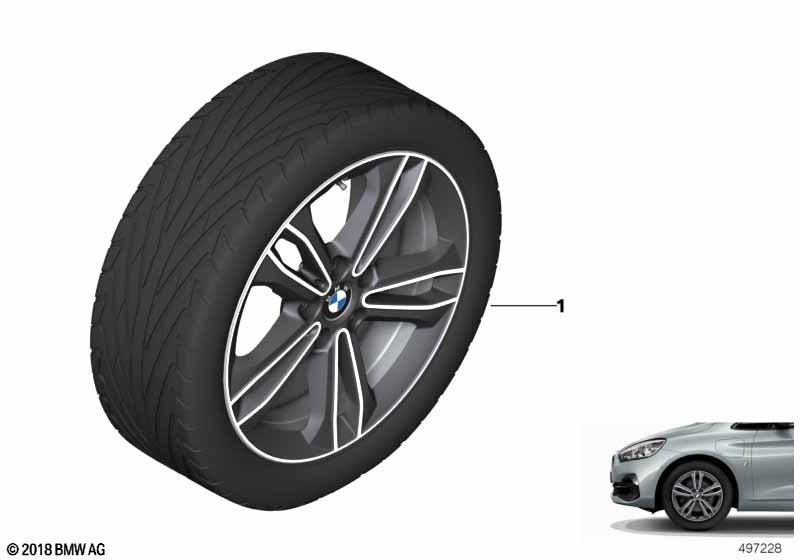

This BMW LA wheel double spoke 549 - 17" technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with National version japan and Tire with run-flat functionality and Tire pressure display Standard tires without emergency running properties Michelin Primacy 4 |
L807A=No S258A=No S2VBA=Yes |
|||||||||
| 01 | TPM tire and wheel, summer, Orbitgrey | 205/55R17 95W | 1 | 36115A3E044 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Tire with run-flat functionality and Tire pressure display Standard tires without emergency running properties Hankook Ventus S1 evo2 |
L807A=No S258A=No S2VBA=Yes |
|||||||||
| 01 | TPM tire and wheel, summer, Orbitgrey | 205/55R17 95W | 1 | 36112468588 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire with run-flat functionality and Tire pressure display Standard tires without emergency running properties Michelin Primacy 4 |
L807A=No S258A=Yes S2VBA=Yes |
|||||||||
| 01 | TPM tire and wheel, summer, Orbitgrey | 205/55R17 95W | 1 | 36115A3E044 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Tire with run-flat functionality and Tire pressure display Standard tires without emergency running properties Hankook Ventus S1 evo2 |
L807A=No S258A=Yes S2VBA=Yes |
|||||||||
| 01 | TPM tire and wheel, summer, Orbitgrey | 205/55R17 95W | 1 | 36112468588 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 71102333674 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
