M Performance aerodynamics acc.parts for BMW 8 Series G14 Convertible M850iX (2025)

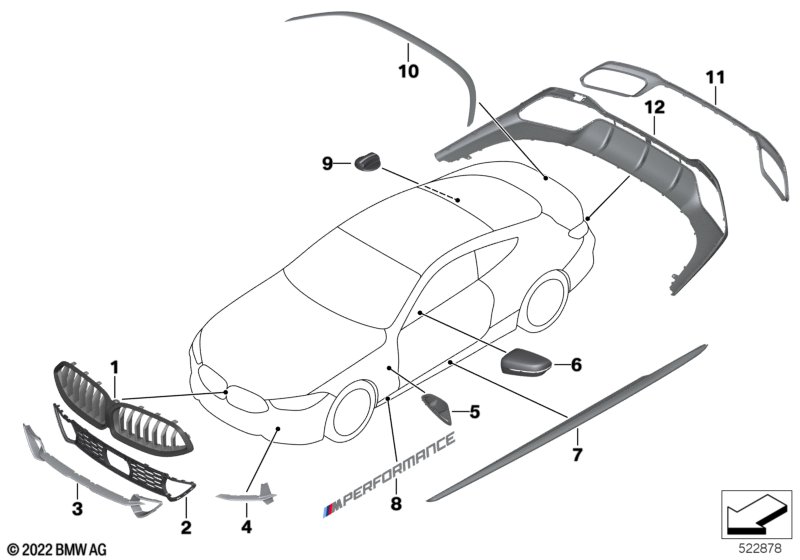

This M Performance aerodynamics acc.parts technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Convertible M850iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. Note: For Mainland China: Retrofitting not following GA-801 2019 is only allowed for use on racetrack and not for use on public roads according to the relevant retrofitting regulation. For G14, G15, G16 Outside mirror shrouds carbon, Trim air duct side panel CFRP and Rocker panel covers carbon do not follow GA-801 2019. |
|||||||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function |
S5AUA=Yes S5DFA=Yes |
|||||||||
| 02 | Grill, air intake, center | CFK/FRR | 1 | 51118074420 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Air inlet finisher, left | CFK | 1 | 51118074801 | Shop at ECS Tuning | |||||
| -- | Air inlet finisher, right | CFK | 1 | 51118074802 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function |
S5AUA=Yes S5DFA=No |
|||||||||
| 02 | Grill, air intake, center | CFK/FRR | 1 | 51118074420 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Air inlet finisher, left | CFK | 1 | 51118074801 | Shop at ECS Tuning | |||||
| -- | Air inlet finisher, right | CFK | 1 | 51118074802 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function |
S5AUA=No S5DFA=Yes |
|||||||||
| 02 | Grill, air intake, center | CFK/FRR | 1 | 51118074420 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Air inlet finisher, left | CFK | 1 | 51118074801 | Shop at ECS Tuning | |||||
| -- | Air inlet finisher, right | CFK | 1 | 51118074802 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional and Active cruise control+Stop&Go function |
S5AUA=No S5DFA=No |
|||||||||
| 03 | Centre finisher | CFK | 1 | 51118074800 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Grill, air intake, center | -M- | 1 | 51118074419 | Shop at ECS Tuning | |||||
| 04 | Left finisher | CFK | 1 | 51118074805 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Grill, air intake, open, left | CFK | 1 | 51118074421 | Shop at ECS Tuning | |||||
| 04 | Right finisher | CFK | 1 | 51118074806 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Grill, air intake, open, right | CFK | 1 | 51118074422 | Shop at ECS Tuning | |||||
| 05 | Trim, air duct on side panel CFRP, right | M PERFORMANCE | 1 | 51132466812 | Shop at ECS Tuning | |||||
| 05 | Trim air duct side panel CFRP, left | M PERFORMANCE | 1 | 51132466813 | Shop at ECS Tuning | |||||
| 06 | Exterior mirror shroud, carbon, RHD, lft | M PERFORMANCE | 1 | 03/2022 | 51162446823 | Shop at ECS Tuning | ||||
| 06 | Outside mirror shroud, carbon, RHD, rgt | M PERFORMANCE | 1 | 03/2022 | 51162446826 | Shop at ECS Tuning | ||||
| For vehicles with National version China and M Aerodynamics package |
L8AAA=No S715A=Yes |
|||||||||
| 07 | Rocker panel cover, carbon, left | M PERFORMANCE | 1 | 51192464417 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 07 | Rocker panel cover, carbon, right | M PERFORMANCE | 1 | 51192464418 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Decal kit | M PERFORMANCE | 1 | 51142461811 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 08 | Decal kit | M PERFORMANCE | 1 | 51142461811 | Shop at ECS Tuning | |||||
| 09 | Tank cap, cap, carbon | M PERFORMANCE | 1 | 16112472988 | Shop at ECS Tuning | |||||
| 11 | Cover, bumper, rear | CFK | 1 | 51128074817 | Shop at ECS Tuning | |||||
| 12 | Trim panel, bumper, rear, bottom | CFK | 1 | 51128077594 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Trim cover, tow fitting, rear | CFK | 1 | 51128077464 | Shop at ECS Tuning | |||||
