Rem.of retrofit/conversion Union Jack for BMW MINI F56 Cooper

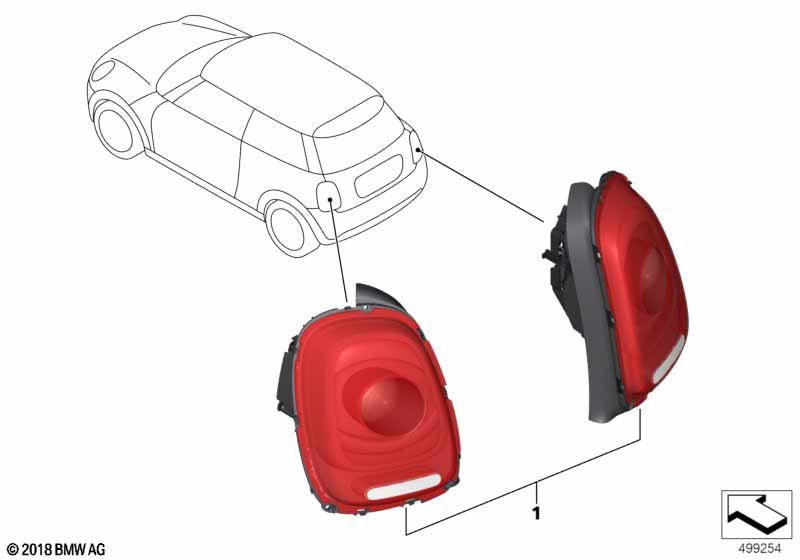

This Rem.of retrofit/conversion Union Jack technical drawing provides a detailed breakdown of the assembly for the MINI F56 Cooper. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The installation instructions include notes describing how to remove a retrofit/conversion. |
|||||||||
| 01 | Tail light left | 1 | 63217297413 | Shop at ECS Tuning | ||||||
| 01 | Tail light right | 1 | 63217297414 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Cable tie | L=200MM/B=3,6MM | 15 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 2 | 61136931880 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 0.5-1.0MM² GN | 2 | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Cable red-blue | 0,75MM² | 4 | 61126902615 | $1.45 | Shop at ECS Tuning | ||||
| -- | Cable blue-yellow | 0,75MM² | 6 | 61126908722 | $1.45 | Shop at ECS Tuning | ||||
| -- | Terminal socket MCON 1.2 ELA | 0,5-0,75MM² AG | 2 | 12527545858 | $0.50 | Shop at ECS Tuning | ||||
| -- | Installation instructions | 1 | 01292462995 | Shop at ECS Tuning | ||||||
