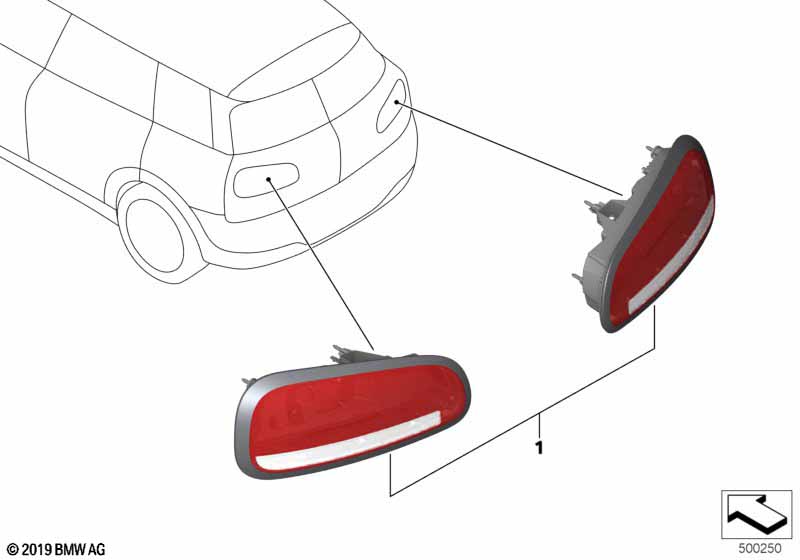

Conversion, taillamps, facelift for BMW MINI Clubman F54 Cooper (2019)
This Conversion, taillamps, facelift technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, rr light, facelift | 1 | 63132473459 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 4 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Cable tie | L=200MM/B=3,6MM | 15 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||

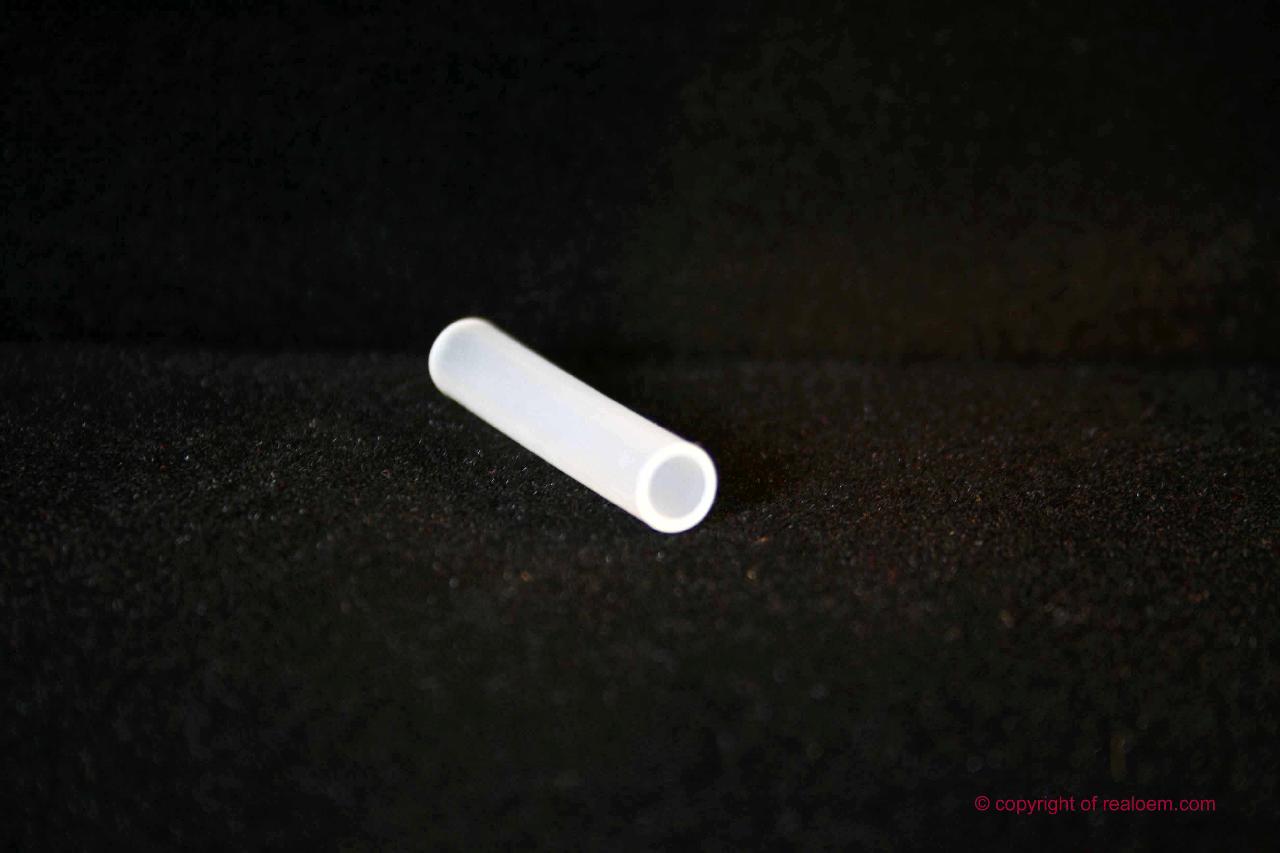

| -- | Shrinking hose | 6X45MM | 8 | 61131379833 | $1.37 | ENDED | Shop at ECS Tuning | |||
| -- | Cable black-violet | 0,75MM? | 10 | 61131391709 | $1.58 | Shop at ECS Tuning | ||||
| -- | Contact pin MQS | 0,5-0,75MM² /SN | 2 | 61131393723 | $0.42 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 8 | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Universal socket housing uncoded | 10 POL. | 2 | 61136909008 | $1.82 | Shop at ECS Tuning | ||||
| -- | Cable connector | 1.0-0.75 MM² | 8 | 61138353747 | $0.77 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
