BMW LA wheel V-spoke 780 - 18" for BMW 3 Series G21 Touring 320d (2022)

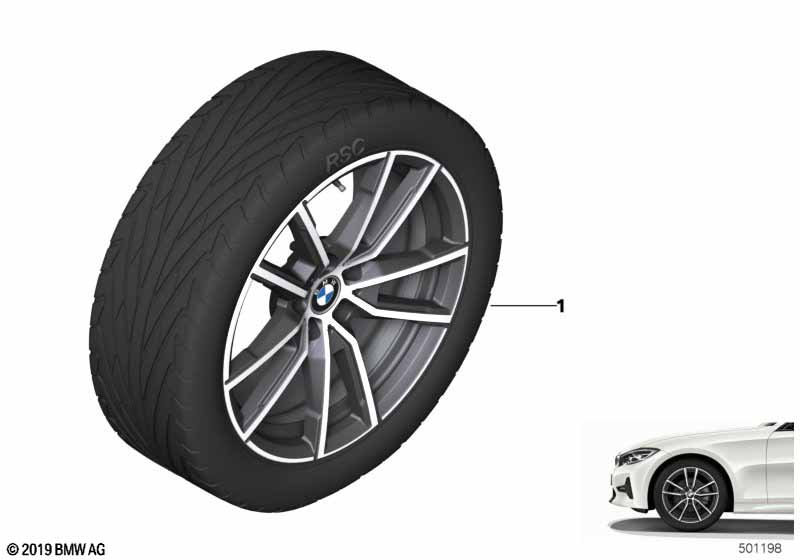

This BMW LA wheel V-spoke 780 - 18" technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and National version China and Tire pressure display and CONTROL DSC |
L807A=No L8AAA=No S2VBA=Yes S8WEA=No |
||||||||
| Runflat tires with emergency running properties Michelin Pilot Sport 4 ZP |
||||||||||
| 01 | TPM tire and wheel, summer, Orbitgrey | 225/45R18 95Y | 1 | 36115A4FF71 | Shop at ECS Tuning | |||||
| Runflat tires with emergency running properties Goodyear Eagle F1 Asymmetric 3 ROF |
||||||||||
| 01 | TPM tire and wheel, summer, Orbitgrey | 225/45R18 95Y | 1 | 36112471380 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring 320d BMW LA wheel V-spoke 780 - 18"?
- This technical diagram illustrates the BMW LA wheel V-spoke 780 - 18" within the Retrofitting / conversion / accessories group for the 3 Series G21 Touring 320d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the TPM tire and wheel, summer, Orbitgrey (Part #36115A4FF71).
- Which models use the hardware listed in this BMW LA wheel V-spoke 780 - 18"?
- The hardware and components featured in the BMW LA wheel V-spoke 780 - 18" are specific to the 3 Series G21 Touring 320d produced during 2022. These technical specifications ensure that parts like the TPM tire and wheel, summer, Orbitgrey (36115A4FF71) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel V-spoke 780 - 18" assembly?
- Each item in the BMW LA wheel V-spoke 780 - 18" corresponds to the numbered list below the illustration. For the 3 Series G21 Touring 320d, you can identify the TPM tire and wheel, summer, Orbitgrey by locating its position on the schematic, which then links to the official BMW part number 36115A4FF71 for the Retrofitting / conversion / accessories section.
