Retrofit parked-car heater for BMW 3 Series G20 Sedan 330iX (2022)

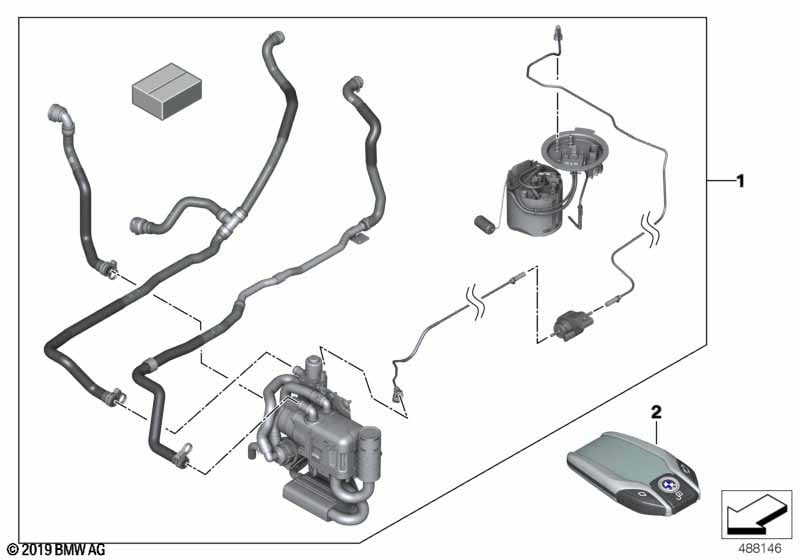

This Retrofit parked-car heater technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention! The retrofit may not be done until after first registration of the vehicle (WLTP). Attention: The auxiliary heating shall not be retrofitted in vehicles with Remote Engine Start (SA1CR). Note: The installation instructions are not in the retrofit kit. The latest installation instructions from the Aftersales Assistance Portal (ASAP) must be printed and given to the customer. Mode of operation: bypass heating circuit w/o engine heat-up Note for diesel cars: The auxiliary heating system retrofit kits are not suitable for rape methyl ester (RME). For vehicles with Remote engine start and Auxiliary heating |
S1CRA=No S536A=No |
||||||||
| 01 | Install.kit, independent heater | 1 | 64505A07849 | Shop at ECS Tuning | ||||||
| 02 | BMW display key | ECE+ROW | 1 | 66129877470 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | USB-Connection cable | 1 | 66129365096 | Shop at ECS Tuning | ||||||
| Contains remote control for auxiliary heating |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
