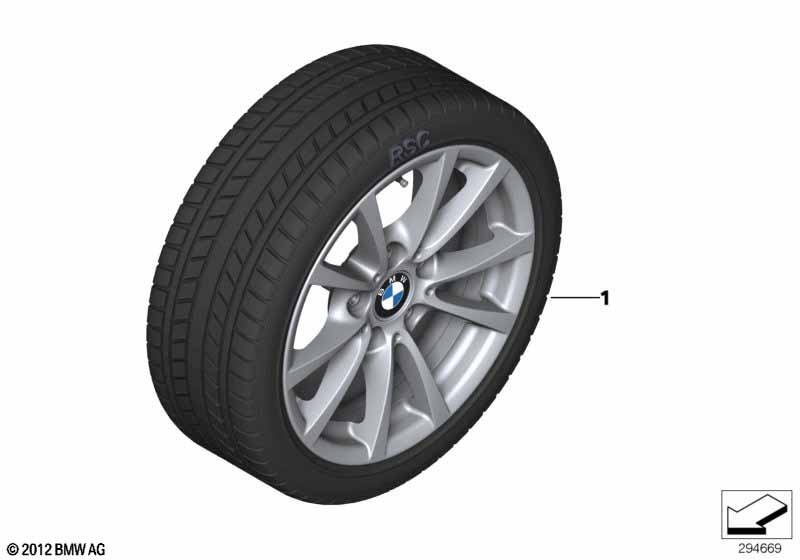

Spike/SC winter whl.w/tire Styl.390-16" for BMW 4 Series F36 Gran Coupé 418d (2015)
This Spike/SC winter whl.w/tire Styl.390-16" technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé 418d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Studded and soft compound tires/winter wheels with tires have no release or technical recommendation from the BMW Group Development dept.! The min. requirement of the BMW Group Development dept for studded and soft compound tires is the legal (technical and functional) min. requirement for the tire manufacturers to sell a tire (which includes proof through certification on the side panel)! The warranty claim in the claim chain End customer > Dealer > NSC > Service provider/assembler of the studded and soft compound tires / winter wheels with tires > BMW AG > Tire manufacturer is thereby limited to the legal (technical and functional) min. requirement for tires. The sale of studded and soft compound tires/winter wheels with tires is limited to the countries of Denmark, Norway, Sweden, Finland, Estonia, Latvia, Lithuania, Russia, Kazakhstan, Belarus and Ukraine, but can have other markets added based on market requirements and after consultation with the BMW Group specialist depts! Potential national legal regs. must be observed independently by the markets before and/or during the process of selling/installing studded and soft compound tires/winter wheels with tires! Studded and soft compound tires/winter wheels with tires are not part of the current complete vehicle approval, which means that instl. in factory condition is not permitted! Thus instl. on new vehicles before their first registration is also not permitted! Prior to the sale/instl. of studded and soft compound tires/winter wheels with tires, customers must be made aware that the handling of their vehicle may change! Studded and soft compound tires/winter wheels with tires have a lower speed index, thus a speed index label must be adhered in the veh. when they are installed on the veh. The figure of studded/soft compound tires on the winter wheel with tire within the picture panel does not match the figure of the tire actually mounted! |
|||||||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Spike tire Continental IceContact 2 |
S258A=Yes S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, LA Spike | 205/60R16 96T | 4 | 03/2014 | 36112456127 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 03/2014 | 71102333674 | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Softcompound tires Pirelli Winter Ice FR |
S258A=Yes S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel&tire, winter LA Soft Compound | 205/60R16 96T | 4 | 03/2014 | 36112456126 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Tire Mobility Set | BMW | 1 | 03/2014 | 71102333674 | Shop at ECS Tuning | ||||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Spike tire Continental IceContact 2 |
S258A=No S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel & tire, winter, LA Spike | 205/60R16 96T | 4 | 03/2014 | 36112456127 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Tire with run-flat functionality and M Sport brakes and Tire pressure display and Sport brake system Standard tires without emergency running properties Softcompound tires Pirelli Winter Ice FR |
S258A=No S2NHA=No S2VBA=Yes SZP1A=No |
|||||||||
| 01 | RDCi wheel&tire, winter LA Soft Compound | 205/60R16 96T | 4 | 03/2014 | 36112456126 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
