BMW LA wheel double spoke 793i - 19" for BMW 3 Series G20 Sedan 330e (2019)

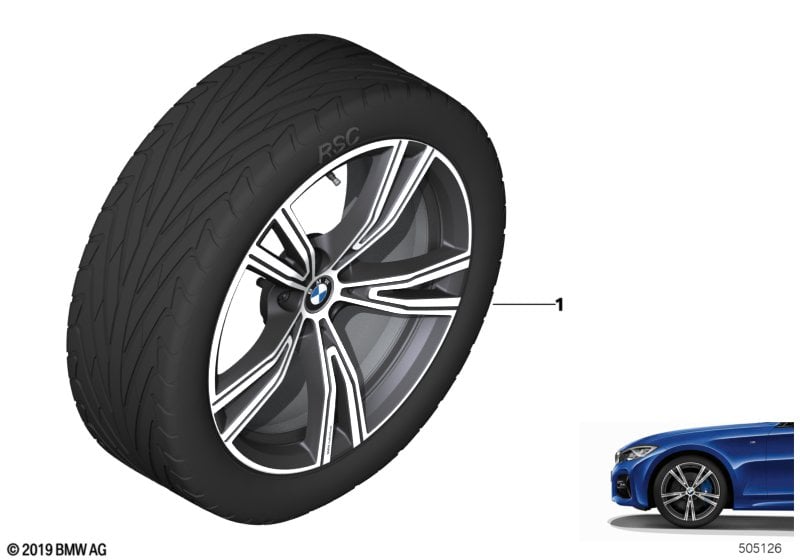

This BMW LA wheel double spoke 793i - 19" technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version japan and Tire pressure display and CONTROL DSC |
L807A=No S2VBA=Yes S8WEA=No |
||||||||
| Runflat tires with emergency running properties Mixed tyres Vorderachse 225/40R19 93Y Hinterachse 255/35R19 96Y Goodyear Eagle F1 Asymmetric 3 ROF |
||||||||||
| 01 | TPM tire and wheel, summer, Orbitgrey | 1 | 36112473098 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
